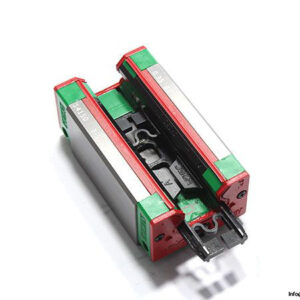

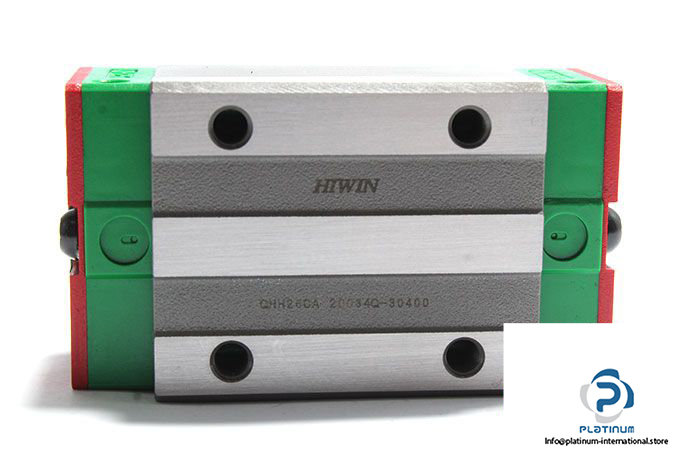

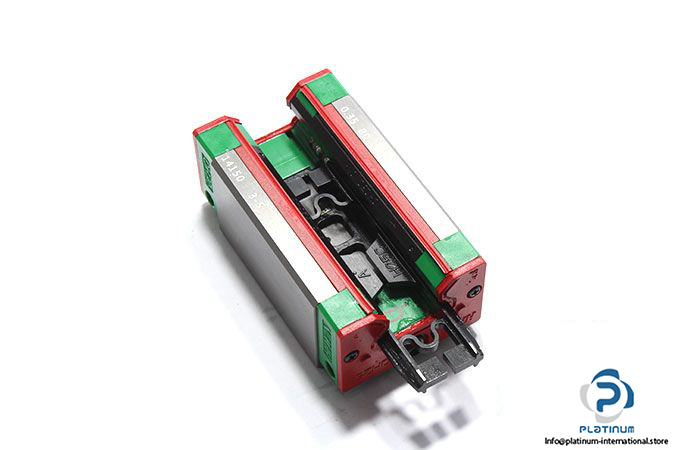

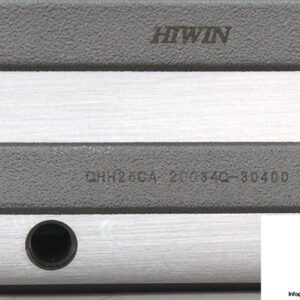

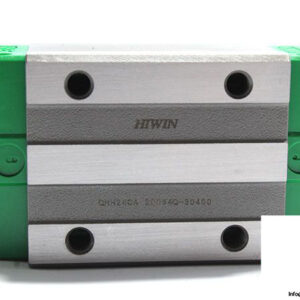

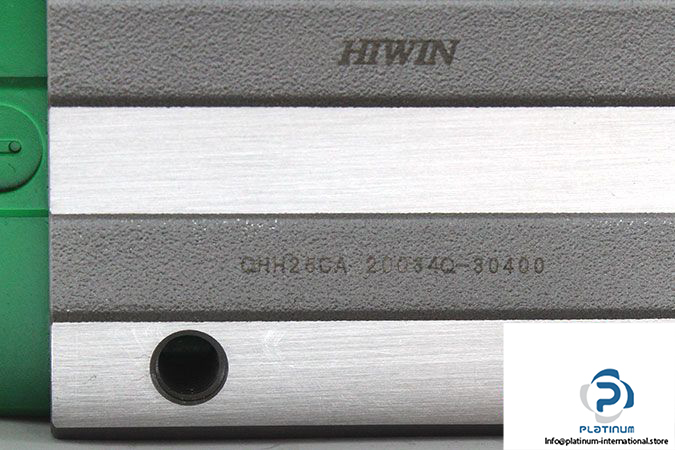

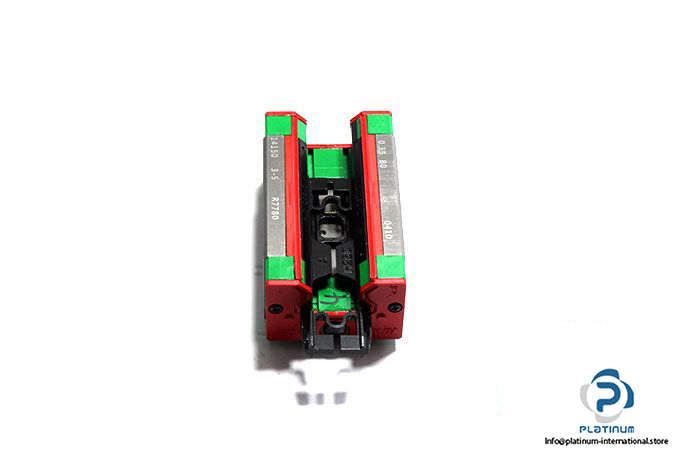

Hiwin QHH25CA Linear Guideway Block
New
In stock10 unitsReady to ship
72,77$
LINEAR GUIDEWAY BLOCK
High-rigidity square-type guideway block from Hiwin™s QH Series with SynchMotion„¢ Technology, 25 mm size, and heavy-load capacity for precision linear motion systems.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
HIWIN QHH25CA LINEAR GUIDEWAY BLOCK
The Hiwin QHH25CA is a heavy-load linear guideway block designed with SynchMotion„¢ Technology for smooth motion, reduced friction, and optimal load distribution. Part of the QH Series, this square-type block is engineered for high rigidity and precision in demanding linear motion applications.
Manufacturer: Hiwin
Type: Linear Guideway Block
Model: QHH25CA
MRN: QHH25CA 20034Q-30400
| Size | 25 mm |
| Total Height (H) | 40 mm |
| Block Width (W) | 48 mm |
| Block Length (L) | 83.4 mm |
| Block Height | 34.5 mm |
| Distance Between Holes | 35, 35 mm |
| Dynamic Load Rating (Cr) | 31.7 kN |
| Static Load Rating (C0r) | 33.68 kN |
| Series | QH Series |
| Technology | SynchMotion„¢ |
| Block Type | H (Square Type) |
| Load Type | C (Heavy Load) |
| Block Mounting | A (Top Mounting) |
