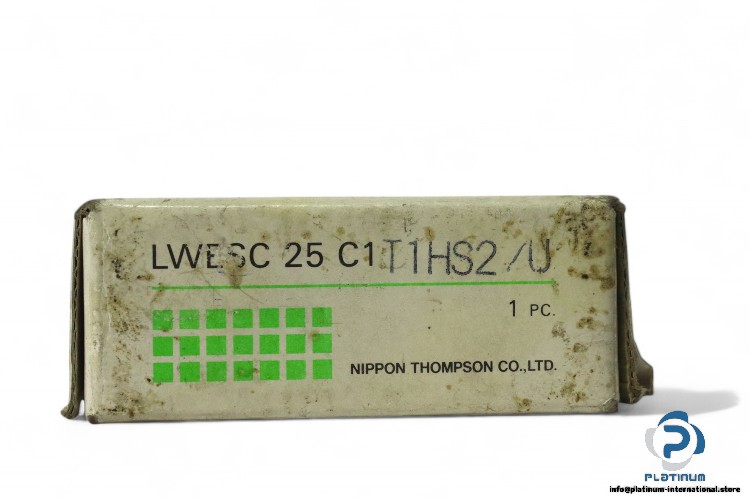

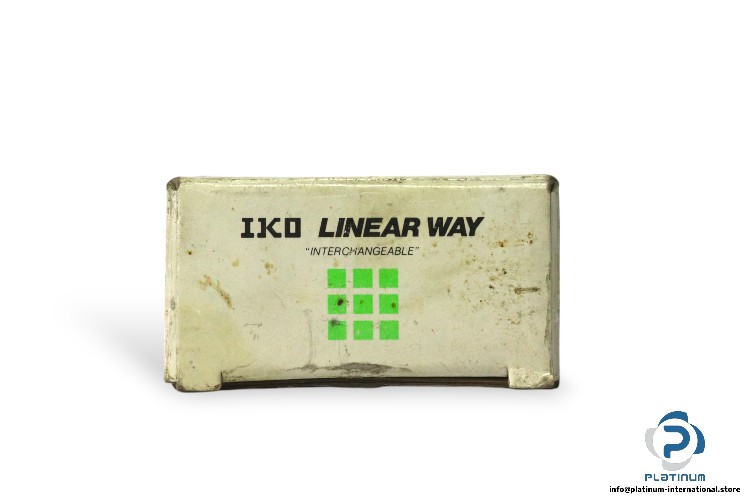

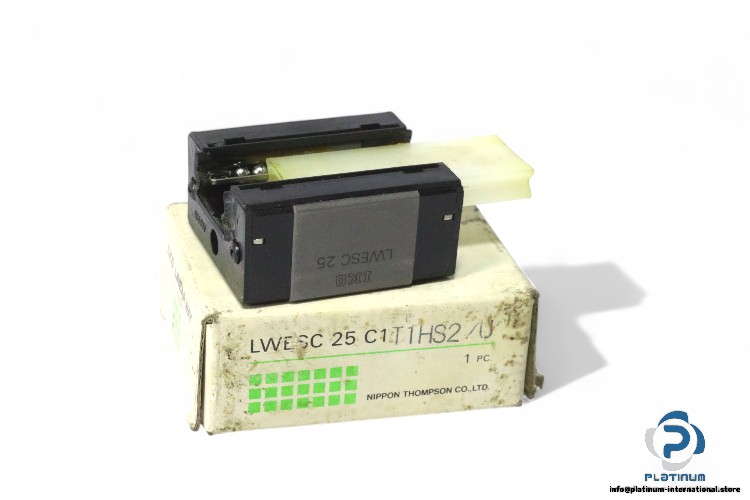

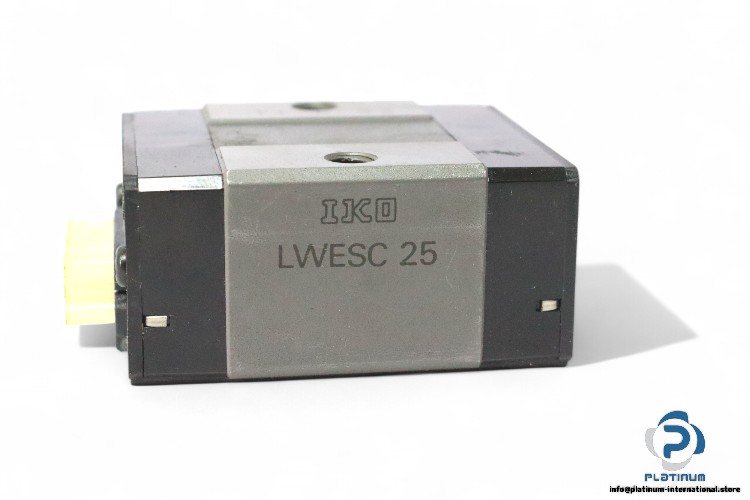

IKO Lwesc 25 C1 T1HS2/U Linear Guideway Block

Manufacturer:  IKO
Type: LINEAR GUIDEWAY BLOCK
Model: LWESC25 C1 T1HS2/U

Size: 25 mm

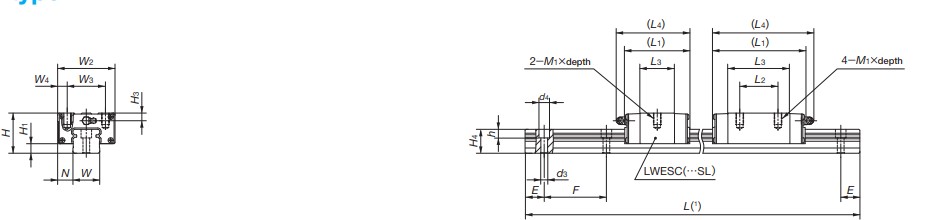

Dimensions
Total Height H: 33 mm
Block Width W₂: 48 mm
Block Length L₁: 59 mm
Block Height (H-H1): 26 mm
Basic Load Ratings:
Dynamic C: 12 400 N
Static C₀: 12 300 N
Block Type: LWES, Block type, mounting from top
Length of slide unit: C, Short
Number of slide units: C1
Interchangeable Code: S2
Preload Amount: T1, Light preload
Special specification: U
Accuracy class: H , High
