Koyo UCF203J Four-Bolt Square Flange Unit

bearings-image-008
koyo-UCF203J-four-bolt-square-flange-unit-(new)-(carton)-1
koyo-UCF203J-four-bolt-square-flange-unit-(new)-(carton)-2
koyo-UCF203J-four-bolt-square-flange-unit-(new)-(carton)-1
koyo-UCF203J-four-bolt-square-flange-unit-(new)-(carton)-2
New
In stock8 unitsReady to ship
Manufacturer:
Koyo
Type:
Four-Bolt Square Flange Unit
Model:
UCF 203J
Manufacturer
KOYO ?
SKU
1005363
Category
Plummer Block Housing Units
Condition
New
17bearingbearingsBlockFlangeflangedFour-BoltHousingKoyommplummerSquareUnitUnits
Share
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

Manufacturer: Koyo
Type: Four-Bolt Square Flange Unit
Model: UCF 203J

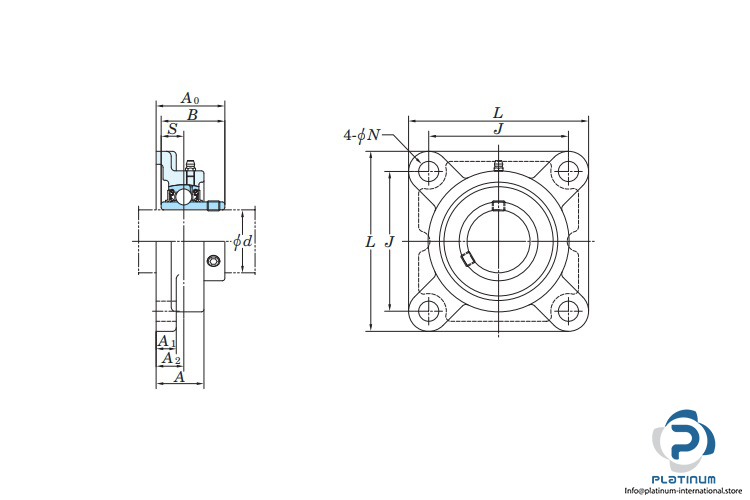

Dimensions
Bore Diameter d: 17 mm
Overall Length L: 86 mm
Width of inner ring B: 31 mm
Distance Between Attachment Bolts J: 64 mm
Overall unit width A0: 33.3 mm
Bolt size: M10
Basic load rating:
Dynamic Cr: 12800 N
Static C0r: 6650 N
fatigue load limit: 302 N
Bore type: Cylindrical
Locking device: set screws
