Koyo Ukfc 208 J Round Flange Ball Bearing Unit
Koyo Round Flange Ball Bearing Unit UKFC208 J €“ High-performance 35 mm bore diameter unit with a tapered bore, round flange housing, and robust load capacity for industrial applications.

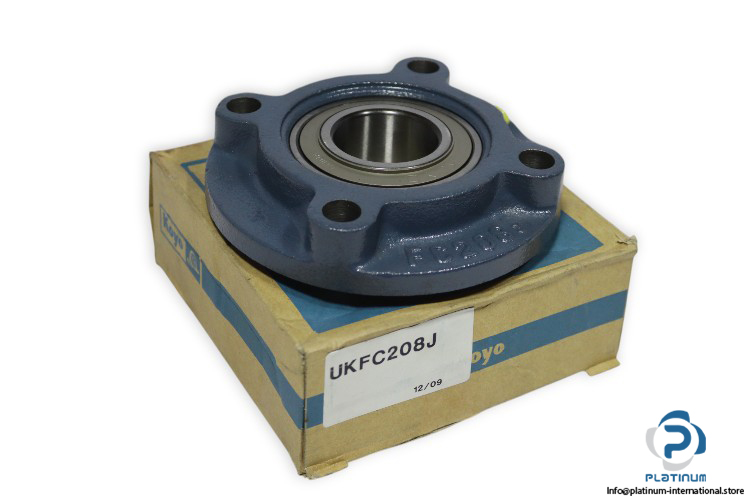

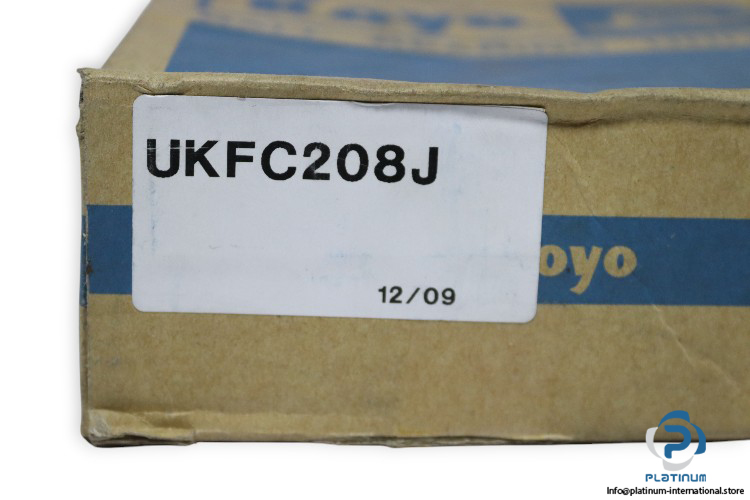

Koyo Round Flange Ball Bearing Unit UKFC208 J
Manufacturer: Koyo
Type: Round Flange Ball Bearing Unit
Model: UKFC208 J

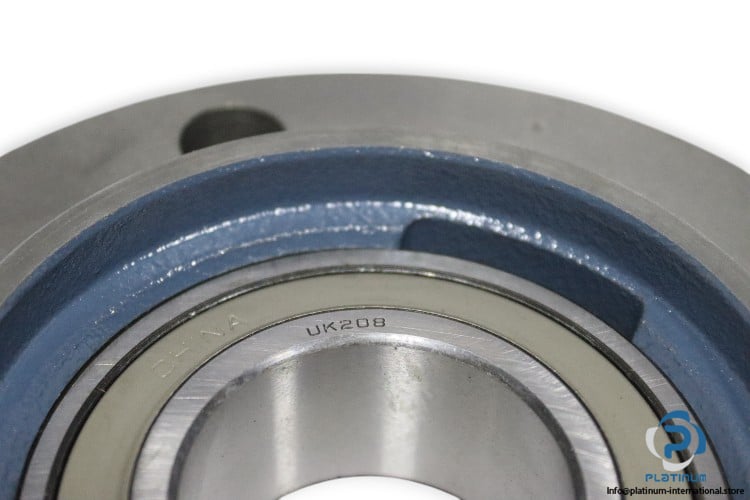

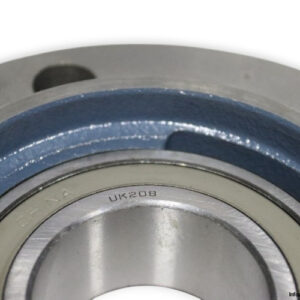

Bearing Number: UK 208

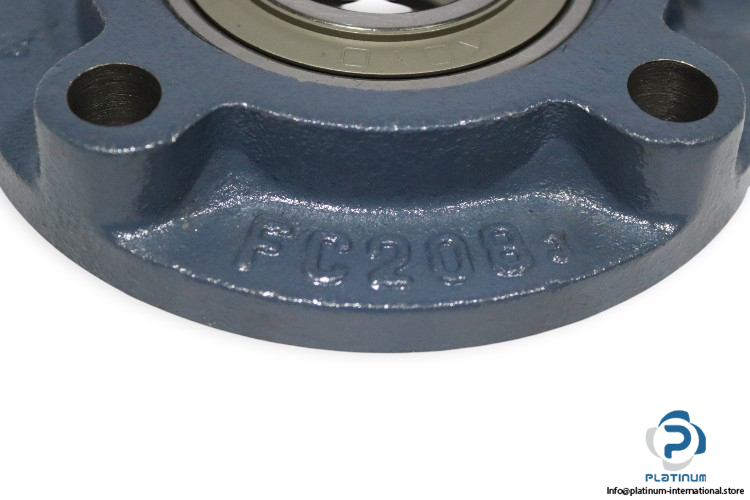

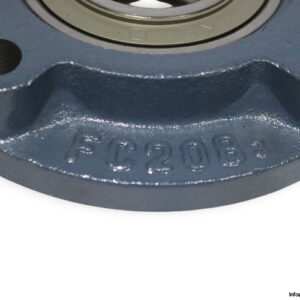

Housing Number: FC 208J
The Koyo Round Flange Ball Bearing Unit UKFC208 J is a high-quality bearing solution designed for industrial applications. This bearing unit combines a robust round flange housing with a precision tapered bore ball bearing, making it suitable for systems requiring stability, precision, and durability. Ideal for demanding environments, it supports high dynamic and static loads while ensuring smooth operation.

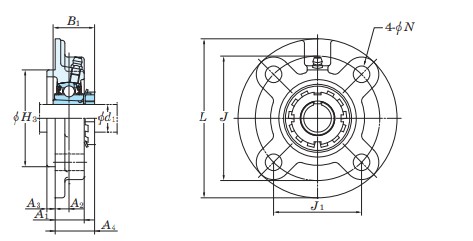

Technical Specifications:
- Bore Diameter (d): 35 mm
- Outside Diameter (L): 145 mm
- Distance Between Attachment Bolts (J1): 84.8 mm
- Pitch Diameter of Attachment Bolts (J): 120 mm
- Length of Attachment Bolt Hole (N): 14 mm
- Width of Inner Ring (B): 46 mm
- A4: 38 mm
- Basic Load Rating:
- Dynamic (Cr): 29.1 kN
- Static (C0r): 17.8 kN
- Fatigue Load Limit: 0.809 kN
- Bore Type: Tapered
- Bolt Size: M12
This versatile bearing unit is engineered for secure installation, ensuring long-lasting performance in various industrial systems. Its durable construction and ability to handle significant loads make it an excellent choice for professionals seeking reliability and precision.
