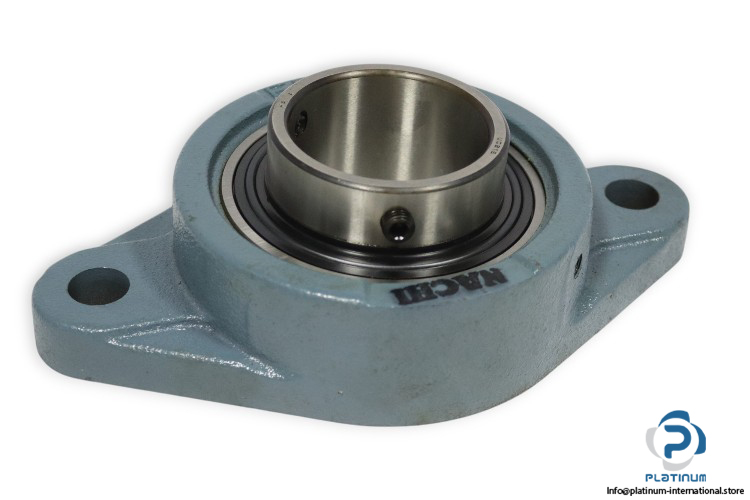

Nachi UCFL215 Oval Flange Ball Bearing Unit
New
In stock1 unitReady to ship
The Nachi UCFL 215 Oval Flange Ball Bearing Unit features a 75 mm bore diameter, dynamic load rating of 66000 N, static load rating of 48200 N, and a set screw locking device. Suitable for demanding industrial environments.
215482006600075BallbearingbearingsBoltboreDevicediameterDynamicFL215FlangeIndustrialLoadlockingM20mmNNachiOvalRatingscrewSetSizeStaticUC215UcflUnit
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
Nachi – Oval Flange Ball Bearing Unit – UCFL 215
The Nachi UCFL 215 Oval Flange Ball Bearing Unit is a robust and reliable solution for various industrial applications. It comes with a solid build and precise specifications to ensure long-lasting performance and easy installation.
Specifications:
- Manufacturer: Nachi
- Type: Oval Flange Ball Bearing Unit
- Model: UCFL 215

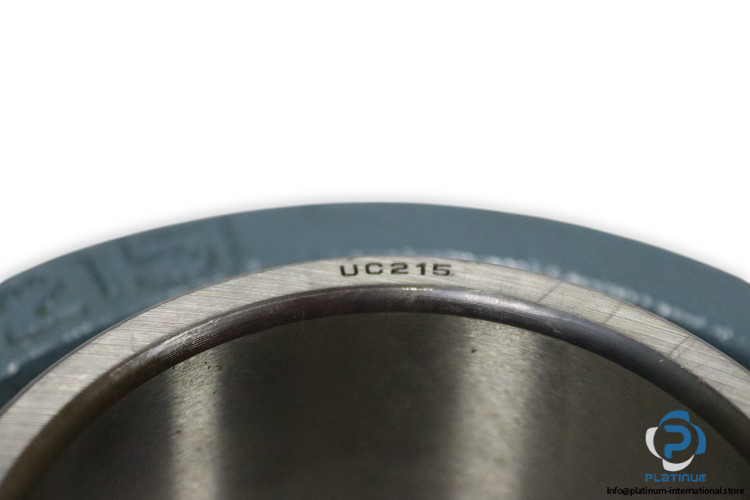

- Bearing No.: UC215

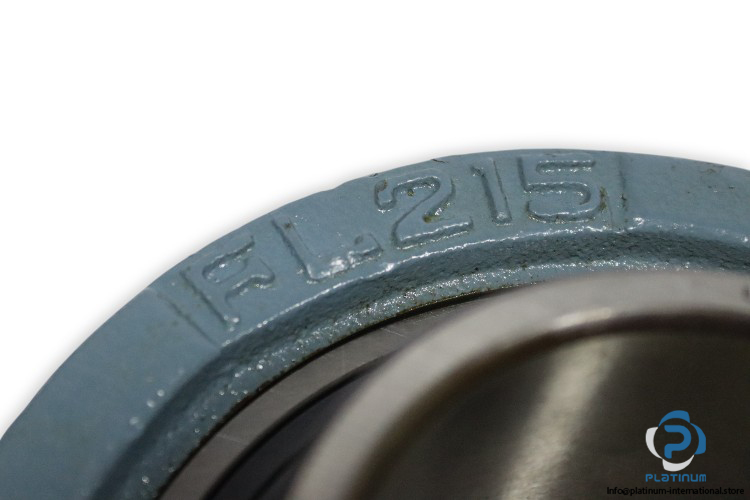

- Housing No.: FL215
Dimensions:
- Bore Diameter (d): 75 mm
- Overall Length (L): 165 mm
- Overall Height (H): 275 mm
- Width of Inner Ring (B): 77.8 mm
- Distance Between Attachment Bolts (J): 225 mm
- Overall Unit Width (A0): 78.5 mm
- Bolt Size: M20
Performance Data:
- Basic Load Rating – Dynamic (Cr): 66000 N
- Basic Load Rating – Static (C0r): 48200 N
- Locking Device: Set Screw
