Nachi UCP 211 Pillow Block Ball Bearing Unit
New
In stock1 unitReady to ship
Pillow Block Bearing Unit

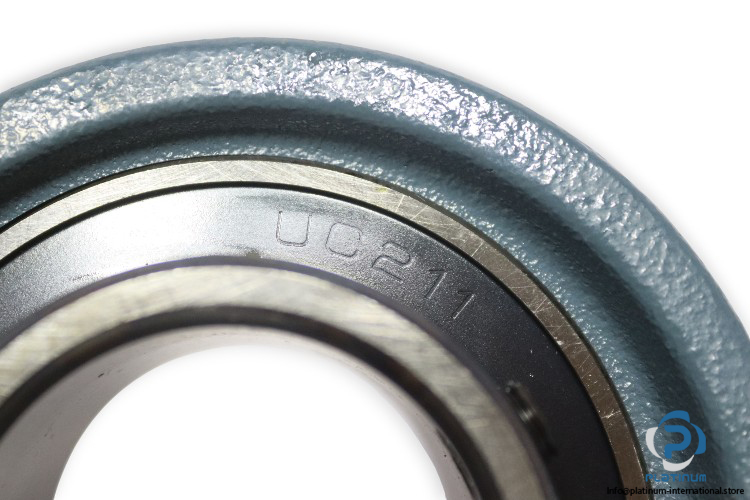

Nachi UCP211 pillow block bearing unit with UC211 insert, 55 mm bore, cast iron housing, and set screw locking for industrial shaft support applications.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

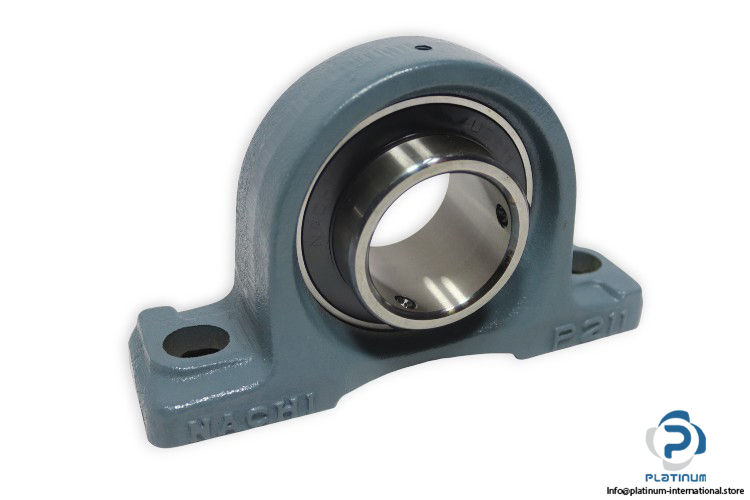

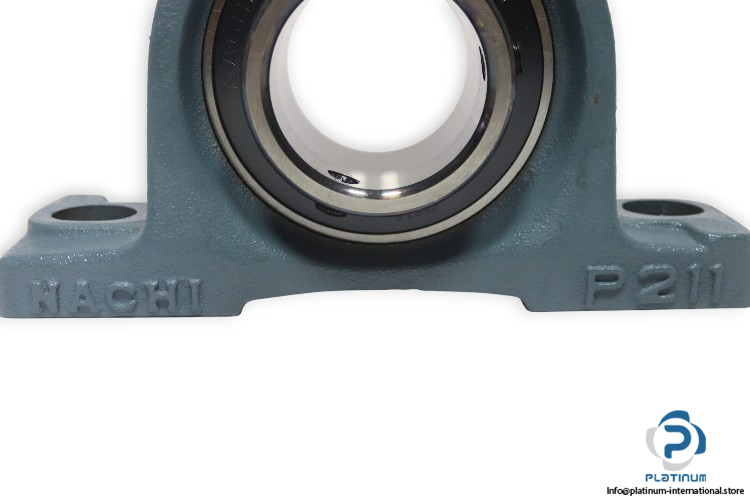

Nachi UCP211 Pillow Block Ball Bearing Unit
The Nachi UCP211 pillow block bearing unit is designed to provide reliable shaft support and smooth rotational performance in industrial applications. It combines a robust cast iron housing with a precision UC211 insert bearing, ensuring durability and stable operation under demanding conditions.
Manufacturer: Nachi
Type: Pillow Block Ball Bearing Unit
Model: UCP211
Bearing Number: UC211
Housing Number: P211
| Bore Diameter (d) | 55 mm |
| Overall Length (L) | 219 mm |
| Overall Height (H2) | 126 mm |
| Width of Inner Ring (B) | 55.6 mm |
| Distance Between Attachment Bolts (J) | 171 mm |
| Diameter of Attachment Bolt Hole (N) | 20 mm |
| Overall Width (A) | 60 mm |
| Bolt Size | M16 |
| Basic Load Rating (Dynamic) | 43,000 N |
| Basic Load Rating (Static) | 29,400 N |
| Locking Device | Set Screws |
| Bore Type | Cylindrical Bore |
| Material | Cast Iron |
