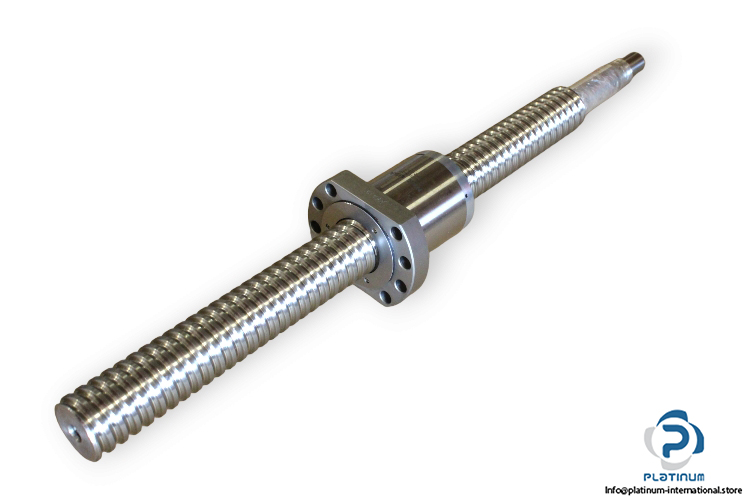

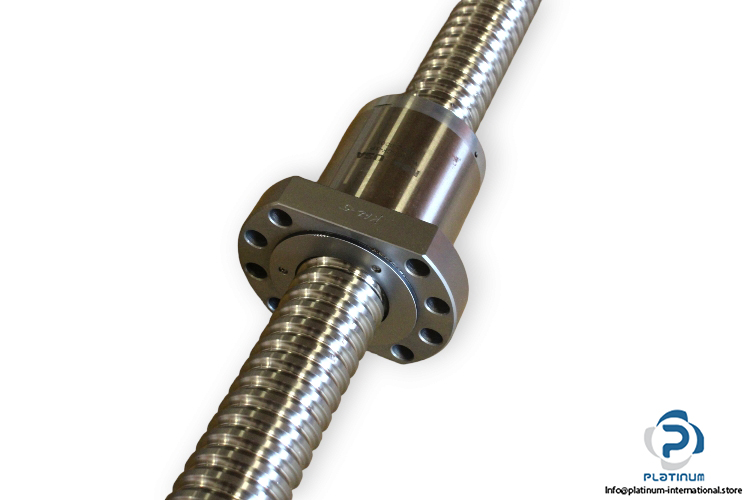

NSK W4505GF-1P-09FZ Ball Screw

Manufacturer: NSK
Type: Flanged nut ball screw

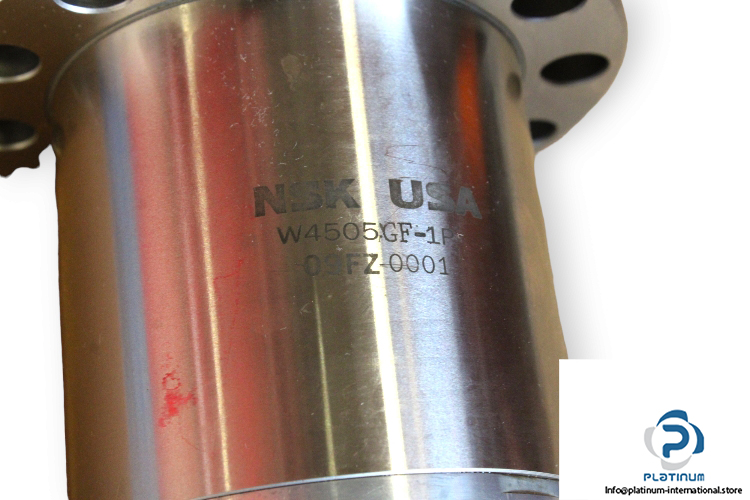

Model: W4505GF-1P-09FZ-0001

Size: 45
Nominal Diameter d: 45 mm

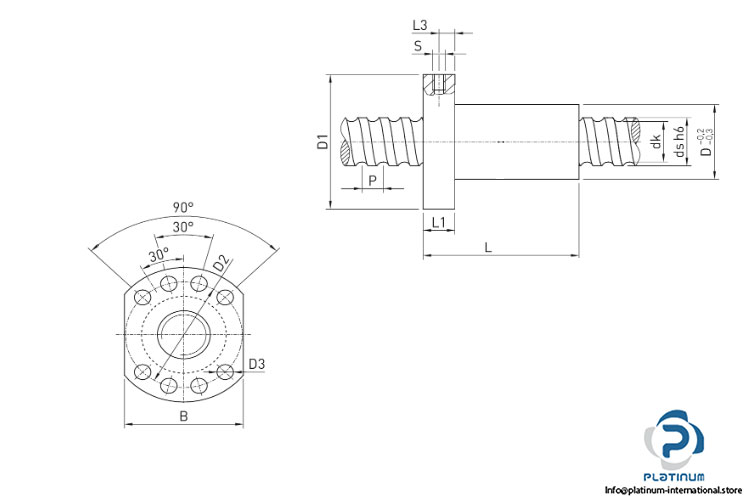

Dimensions:
Flange diameter: 110 mm
Nut outer diameter: 75 mm
Nut length: 101 mm
Flange thickness: 19 mm
Cutting flange width: 85 mm
Lead: 10 mm
Preload Type: P; Oversized ball
Axial Clearance Code: Z; No Axial Clearance (preload)
Direction of Lead: Right-Hand Thread
Effective threaded length (in units of 100 mm): 05
Total screw length: 680 mm
