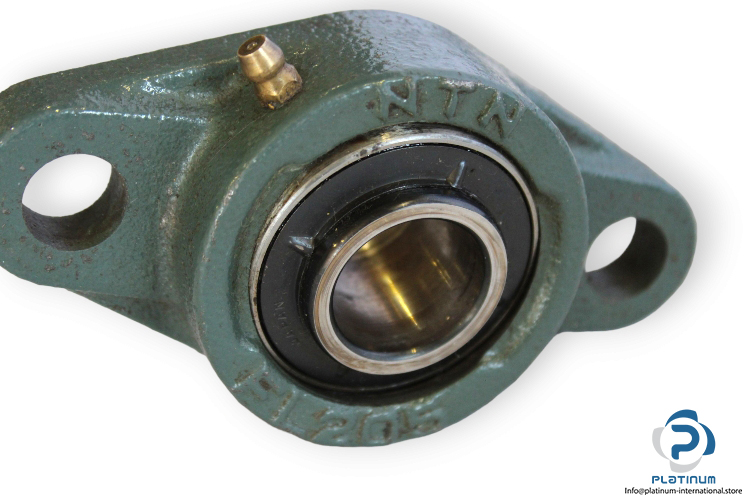

NTN Ucfl 205 Oval Flange Ball Bearing Unit

Manufacturer: NTN
Type: Oval flange ball bearing unit
Model: UCFL 205
Bearing Number: UC205
Housing Number: FL205

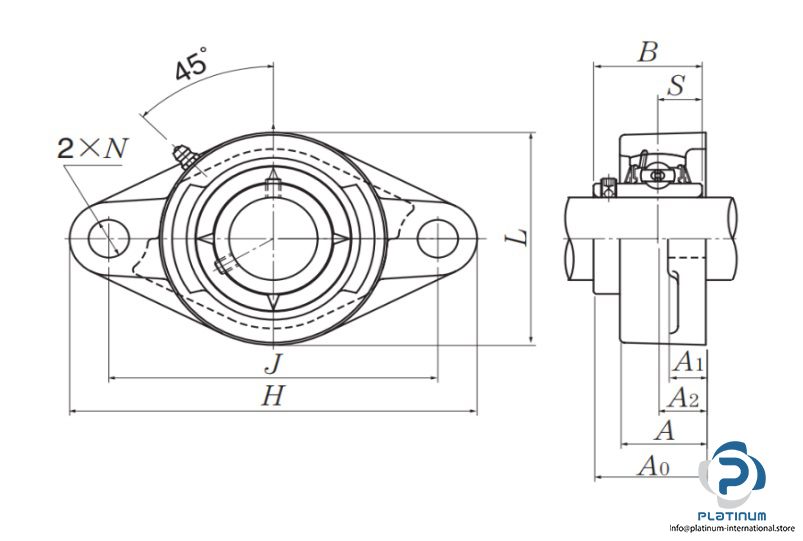

Dimensions
Bore Diameter d: 25 mm
Overall Length L: 68 mm
Overall Height H: 130 mm
Width of inner ring B: 34.1 mm
Distance Between Attachment Bolts J: 99 mm
Overall unit width A₀: 35.8 mm
Dynamic Load Rating: 14000 N
Static Load Rating: 7850 N
Maximum Rotational Speed: 5900 rpm
Mounting: Oval Flange
Housing Material: Cast Iron
Locking Device: Set Screw
