Rexroth Star 1622-293-20 Ball Runner Block SNS
New
In stock1 unitReady to ship
69,99$
BALL RUNNER BLOCK
Rexroth Star R162229320 Ball Runner Block SNS, size 25 mm, slimline standard-height design, carbon steel, 22800 N dynamic load, 30400 N static load, accuracy class H.2280025AccuracyBallBlockCarbonComponentDynamicHighLinearLoadmmMotionNR162229320RexrothRunnerSlimlineSNSStarSteel
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

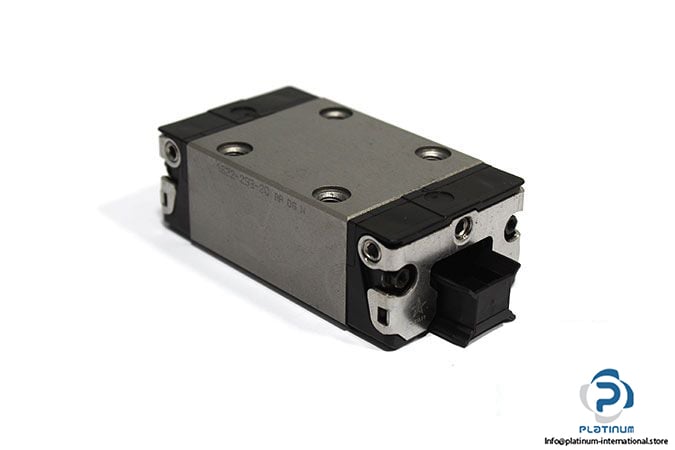

Rexroth Star R162229320 Ball Runner Block SNS
The Rexroth Star R162229320 Ball Runner Block SNS is a precision linear motion component designed for high performance and reliability. Featuring a slimline, standard-height design with high accuracy and load capacity, it ensures smooth and efficient movement in demanding industrial applications.
Manufacturer: Rexroth Star
Type: Ball Runner Block SNS
MNR: R162229320

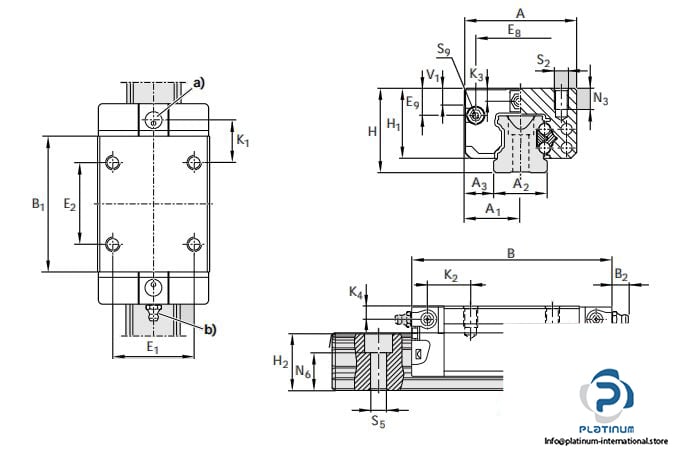

| Size | 25 mm |
| Width (A) | 48 mm |
| Length (B) | 86.2 mm |
| Height (H) | 36 mm |
| E1 | 35 mm |
| E2 | 35 mm |
| Mechanical Format | KWD |
| Design | SNS “ Slimline, Normal, Standard Height |
| Format | CS “ Carbon Steel |
| Maximum Acceleration (amax) | 500 m/s² |
| Maximum Permissible Speed (vmax) | 5 m/s |
| Dynamic Load Capacity (C) | 22800 N |
| Static Load Capacity (C0) | 30400 N |
| Dynamic Torsional Moment Load Capacity (Mt) | 320 Nm |
| Dynamic Longitudinal Moment Load Capacity (ML) | 180 Nm |
| Accuracy Class | H “ High |
| Preload Class | C0 “ Without preload |
