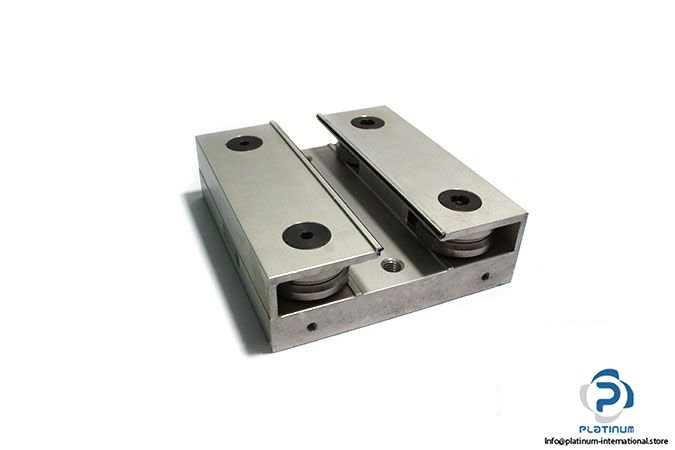

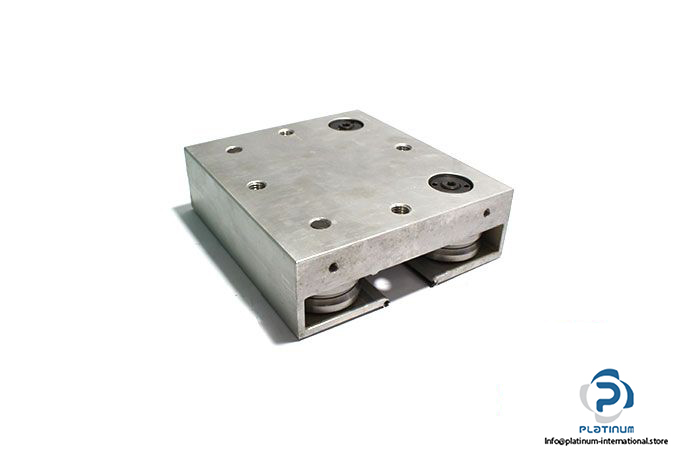

Rexroth Star 1902-352-00 CAM Roller Runner Block SNS

Manufacturer: Rexroth Star

Type: Standard Cam Roller Runner Blocks

MNR: R190235200

Size: 52-sh

Mechanical Format: LWA

Design: SNS – Slimline, Normal, Standard Height

Format: AL – Aluminum

Maximum Acceleration Travel a_max: 50 m/s²

Maximum Permissible Speed v_max: 10 m/s

Dynamic load capacity:

y-direction C_y: 31000 N

z-direction C_Z: 18400 N

Static Load Capacity:

y-direction C_0y: 18200 N

z-direction C_0Z: 8750 N

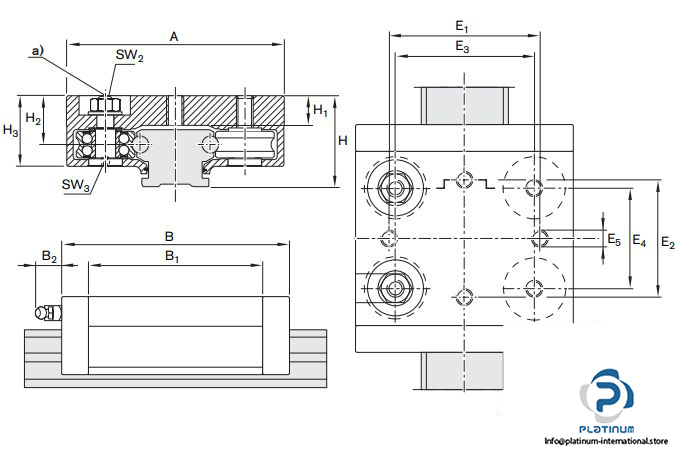

Dimensions

Width (A): 155 mm

Length (B₁): 173 mm

Total Height (H): 60.4 mm

E₁: 115 mm

E₂: 140 mm

Admissible Operating Temperature: -20 °C … +80 °C

Weight: 3.3 kg
