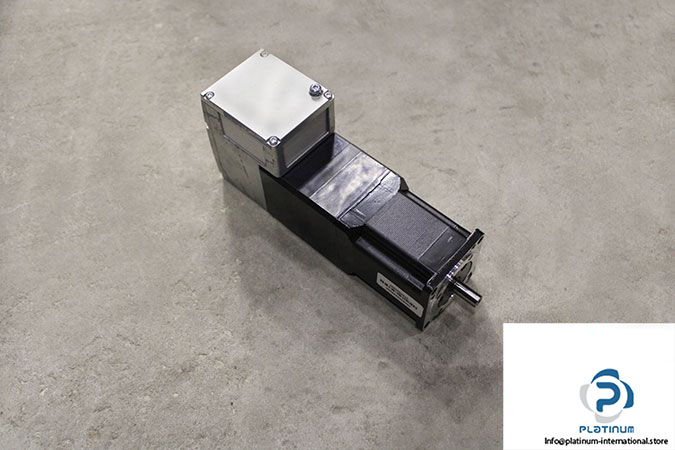

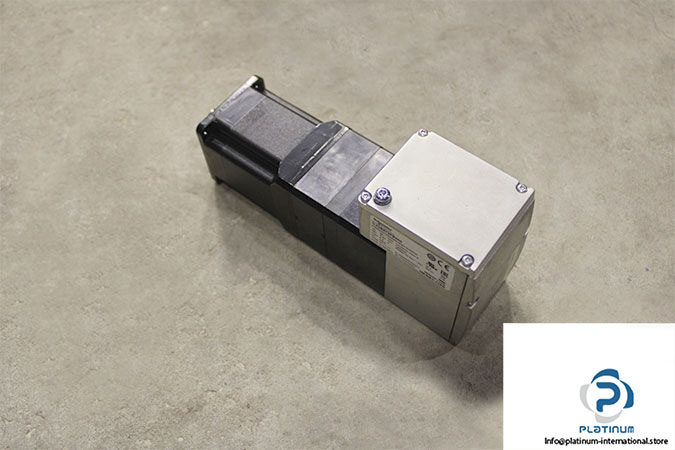

Schneider ILA2E572PB2A0 Integrated Drive With Servo Motor

Manufacturer: Schneider Electric, Elau

Type: Integrated Drive with Servo Motor

Model: ILA2E572PB2A0

Peak Stall Torque [Nm]: 1.62

Continuous Stall Torque [Nm]: 0.78

Nominal Torque [Nm]: 0.63

Max Current [A]: 6.4

Supply Voltage [VDC]: 48

Nominal Speed [rpm]: 3400

Max Surrounding Air Temperature [°C]: 40

Number of Poles: 6

Flange Size [mm]: 57

Shaft Diameter [mm]: 9

Shaft Length [mm]: 20

Protection Class [IP]: 54

Thermal Class: B

Weight [kg]: 1.82
