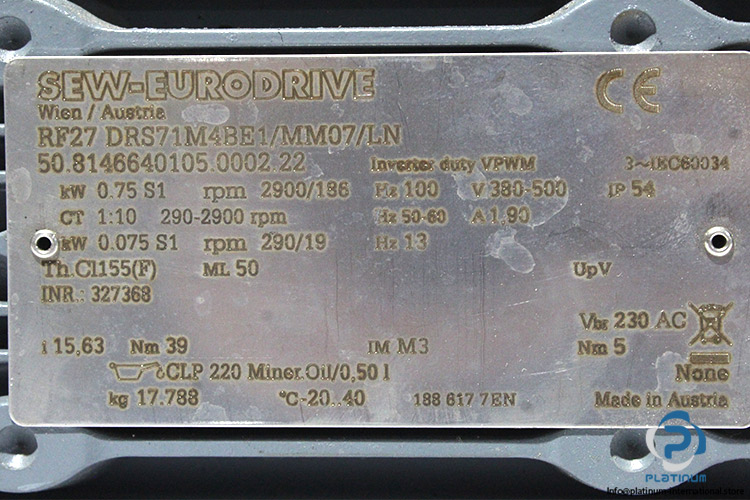

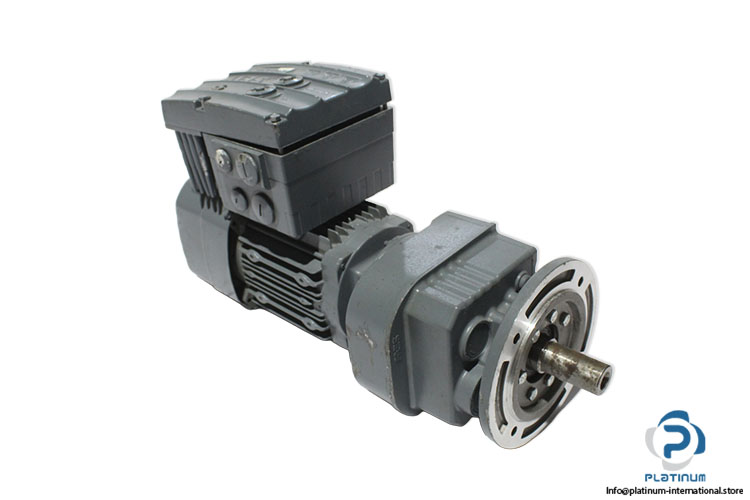

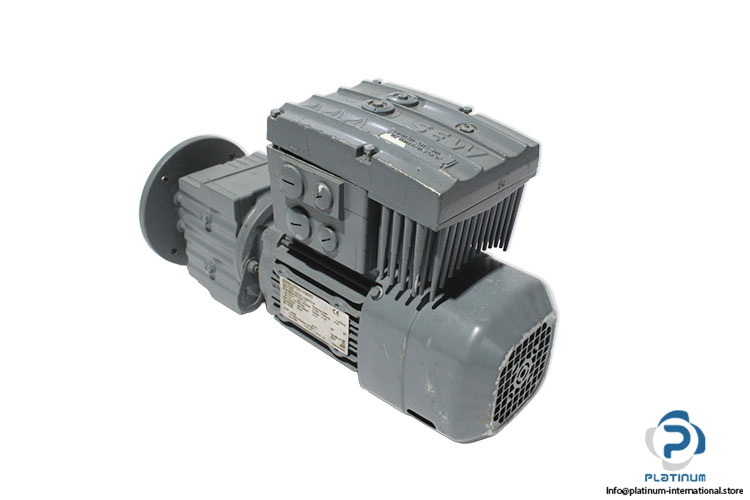

SEW RF27 DRS71M4BE1/MM07/LN Helical Gearmotor
Used
In stock3 unitsReady to ship
Helical Gearmotor The SEW-Eurodrive RF27 DRS71M4BE1/MM07/LN is a helical gearmotor delivering efficient speed control, reliable torque, and IE3 motor performance for industrial automation and power transmission systems.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
| Part No. | 50.8146640105.0002.22/01.6647184601.0001.21/50.8146640105.0004.22 |
| Input speed [r/min] | 2900 - 290 |
| Output speed [r/min] | 186 - 19 |
| Total ratio [i] | 15,63 |
| Ma max [Nm] | 130 |
| Output torque [Nm] | 39 |
| Service factor SEW-FB | 3,40 |
| Mounting position | M3 |
| ISO code | CLP 220 |
| Lubricant type | Miner.Oil |
| Lubricant volume [l] | 0,50 |
| Motor power [kW] | 0.75 / 0.075 |
| Motor mains power [kW] | 0,550 |
| Motor frequency [Hz] | 100 |
| Cyclic duration factor S1-S10 | S1 |
| Setting range (CT) | 1:10 |
| Motor frequency min. [Hz] | 13 |
| Motor voltage [V] | 380-500 |
| Line frequency [Hz] | 50-60 |
| MM rated main current [A] | 1,90 |
| Thermal cl.[°C]/Enclosure[IP] | 155(F) / 54 |
| International efficiency class | IE1 |
| Motor mains efficiency [%] | 70,6 |
| Ambient temperature min. [°C] | -20 |
| Ambient temperature max. [°C] | 40 |
| Brake voltage [V]/-torque [Nm] | 230 AC / 5 |
| Brake rectifier nameplate | None |
| MOVIMOT | MM07 |

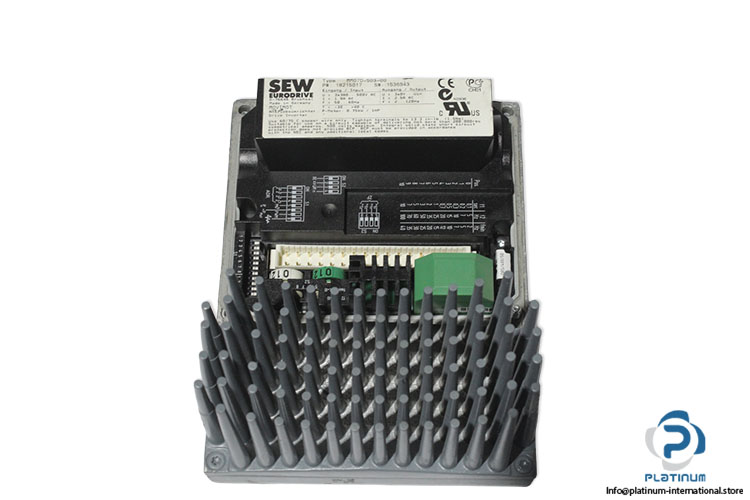

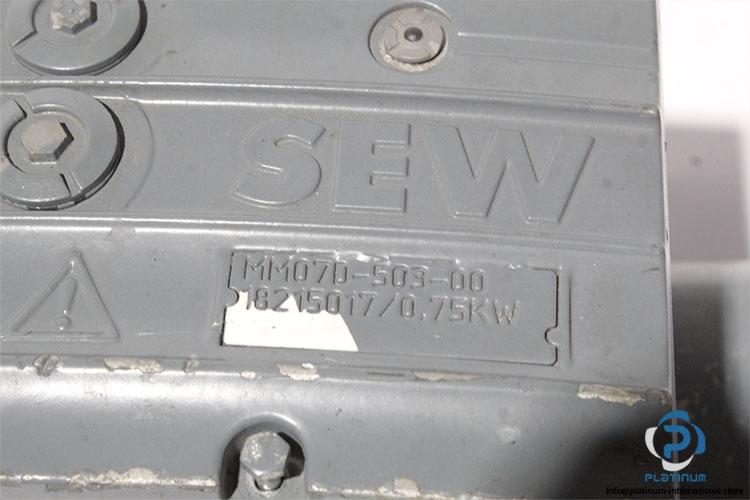

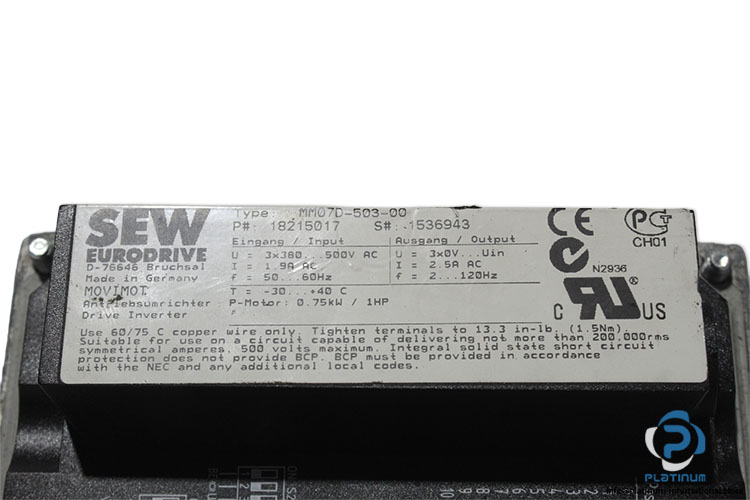

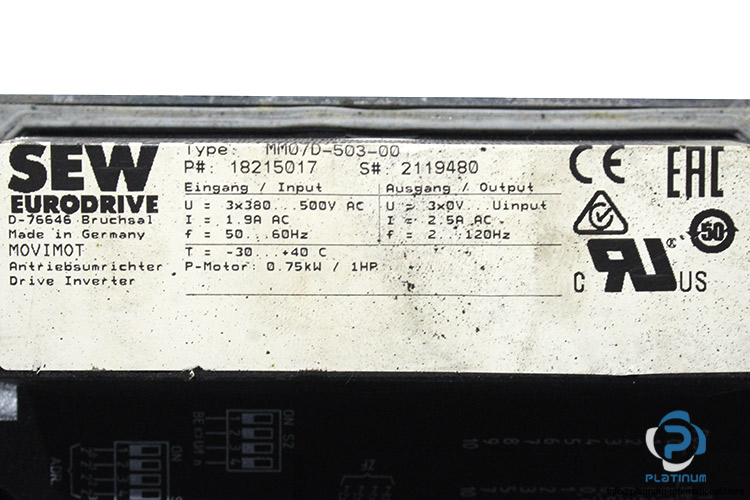

| Attached with | SEW MM07D-503-00 Movimot Inverter Drive |
| P no | 18215017 |
| S no | .1536943 |
| Range | MOVIMOT |
| Supply Voltage, Input | 3-Phase 380 … 500 V AC |
| Rated Current, Input | 1.9 A |
| Frequency, Input | 50 … 60 Hz |
| Power, Input | 0.75kW |
| Rated Voltage, Output | 3-Phase 0 … 380 – 500 V AC |
| Rated Current, Output | 2.5 A |
| Frequency, Output | 2 … 120 Hz |
| Temperature | -30 … 40 °C |
| Stock key | JO-004 |
| Condition | Used |
| SKU | 1100472 |
| Weight | 17,25 |
