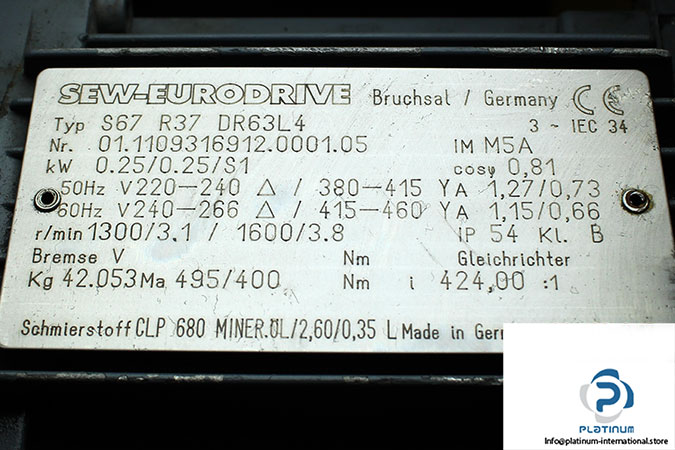

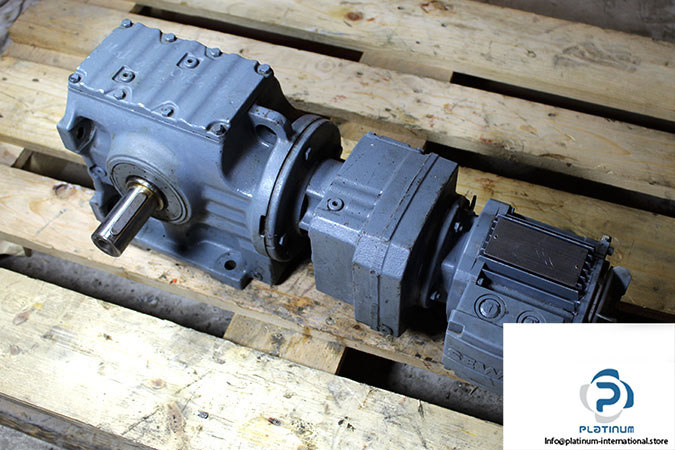

SEW S67 R37 DR63L4 Helical-Worm Gearmotor

Manufacturer: Sew-Eurodrive
Type: Helical Worm Gear Motors
Model: S67R37 DR63L4
ID Number: 01.1109316912.0001.05

Speed [r/min]: 1300 / 3.1
Speed [r/min]: 1600 / 3.8
Total Ratio [i]: 424,00
Output Torque [Nm]: 495 / 400
Service Factor SEW-FB: 1,15 / 1,40
Mounting Position: M5A
Lubricant / Volume [l]: CLP 680 Miner.Oil / 2,60 / 0,35
Output Shaft End [mm]: 35×70
Design: Foot-Mounted Version
Motor Power [kW]: 0.25 / 0.25
Motor Frequency [Hz]: 50
Cyclic Duration Factor: S1
Motor Voltage [V]: 230/400 Delta/Star
Multi Range-Voltage 50Hz [V]: 220-240 Delta / 380-415 Star
Nominal Current [A]: 1,27 / 0,73
Multi Range-Voltage 60Hz [V]: 240-266 Delta / 415-460 Star
Nominal Current [A]: 1,15 / 0,66
Cos Phi: 0,81
Thermal Class/Enclosure [IP]: B / 54
Weight [kg]: 41,5
