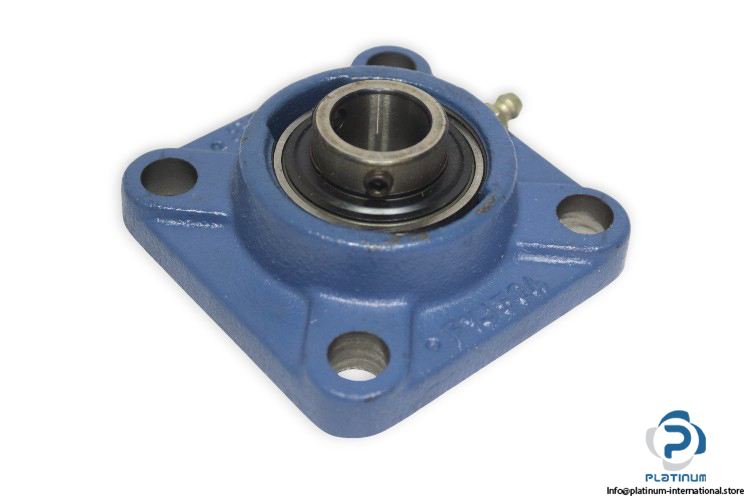

SKF FYJ 20TF Square Flanged Ball Bearing Unit
New
In stock1 unitReady to ship
Square Flanged Bearing Unit
SKF FYJ20TF square flanged ball bearing unit with 20 mm bore, sealed bearing design, and cast iron housing for reliable industrial mounting applications.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
SKF FYJ20TF Square Flanged Ball Bearing Unit
The SKF FYJ20TF is a square flanged ball bearing unit designed to provide reliable shaft support and stable operation in industrial applications. Featuring a robust cast iron housing and sealed bearing design, it ensures durability, long service life, and smooth performance under varying load conditions.
Manufacturer: SKF
Type: Square Flanged Ball Bearing Unit
Model: FYJ20TF

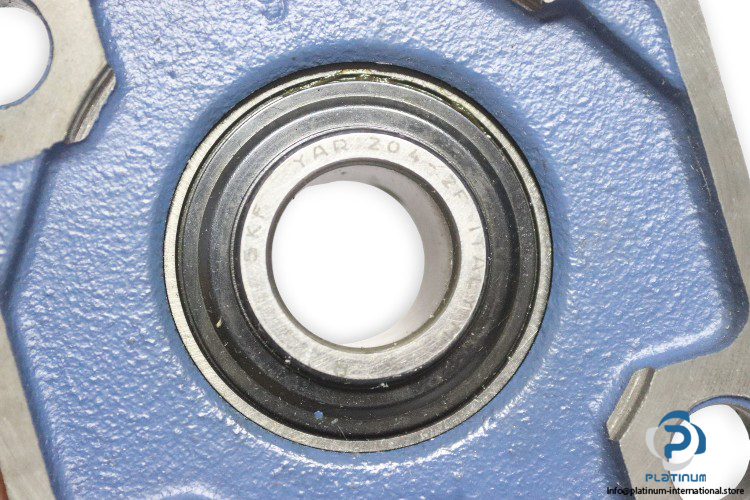

Bearing Number: YAR2042F

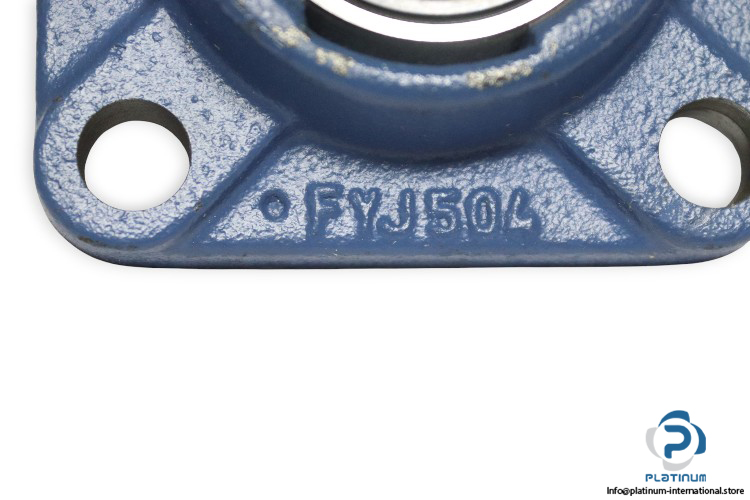

Housing Number: FYJ504
| Shaft Diameter (d) | 20 mm |
| Width of Housing (A) | 25.5 mm |
| Overall Bearing Width (B1) | 31 mm |
| Distance of Attachment Bolts (J) | 64 mm |
| Overall Length (L) | 86 mm |
| Diameter of Attachment Bolt Hole (N) | 12 mm |
| Overall Width (T) | 33.3 mm |
| Basic Dynamic Load Rating | 12.7 kN |
| Basic Static Load Rating | 6.55 kN |
| Limiting Speed | 8500 r/min |
| Sealing (Bearing) | Seal and flinger on both sides |
| Housing Material | Cast iron |
| Mounting | Four-Bolt Base |
