SNR Ucfl 205 Oval Flange Ball Bearing Unit

Name: SNR UCFL 205 OVAL FLANGE BALL BEARING UNIT
SKU: 1005336
Availability: LimitedAvailability

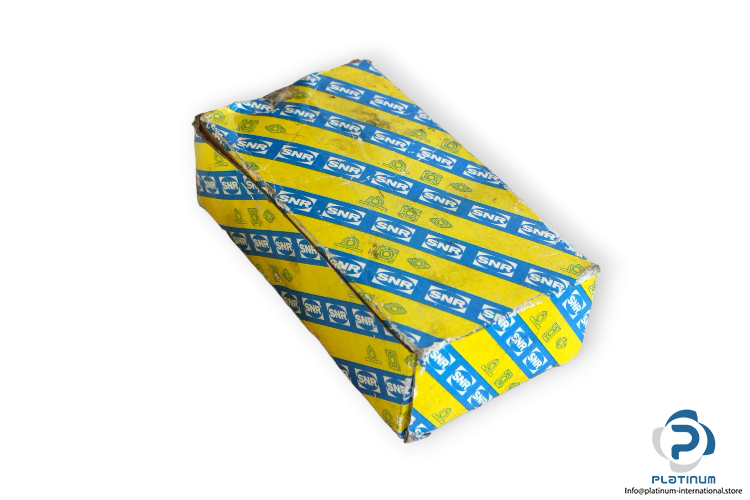

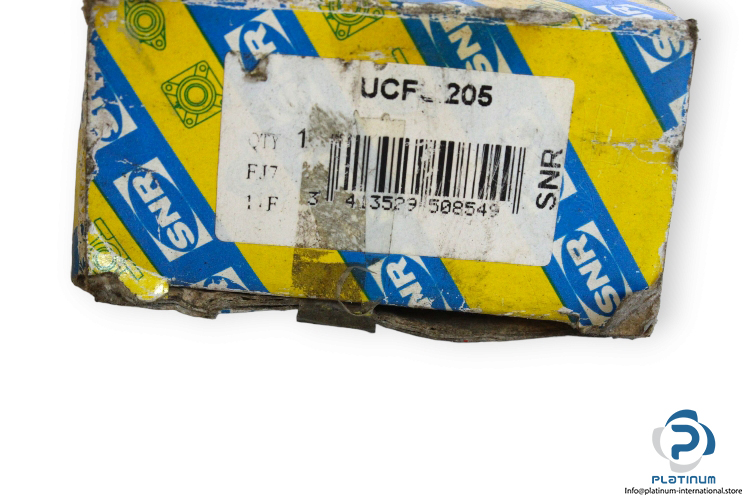

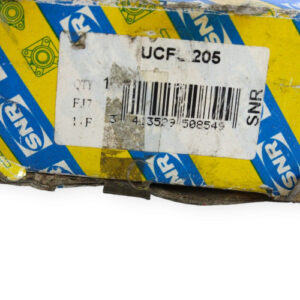

snr-UCFL-205-oval-flange-ball-bearing-unit-(new)-(carton)-1

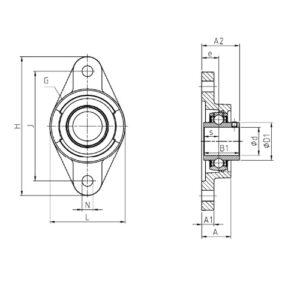

snr-UCFL-205-oval-flange-ball-bearing-unit-(new)-(carton)-2

New

In stock1 unitReady to ship

Housing No.: FL205

Manufacturer:

SNR

Type:

Oval flange ball bearing unit

Model:

UCFL205

Bearing No.:

UC205

Manufacturer

SNR

SKU

1005336

Category

Plummer Block Housing Units

Condition

New

25 bearing bearings flanged Housing mm Oval SNR Two-Bolt Unit Units Žhousing

Massive Inventory

Global Shipping

Expert Support

Quality Guaranteed

Manufacturer: SNR
Type: Oval flange ball bearing unit
Model: UCFL205
Bearing No.: UC205
Housing No.: FL205

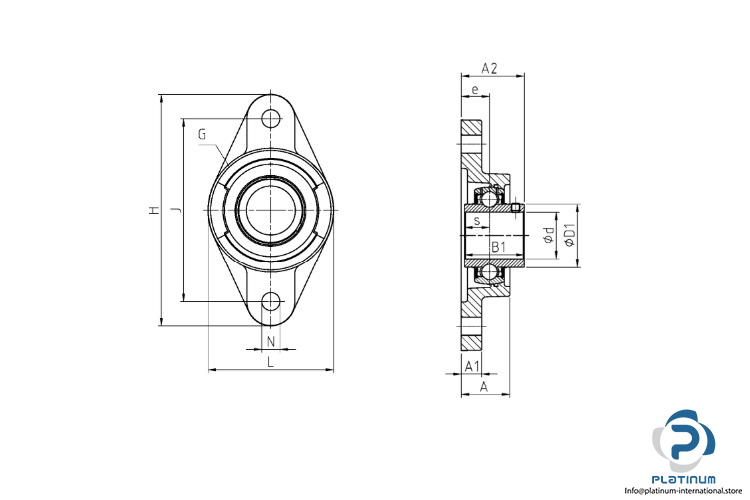

Dimensions
Bore Diameter d: 25 mm
Overall Length L: 68 mm
Overall Height H: 130 mm
Width of inner ring B1: 34 mm
Distance Between Attachment Bolts J: 99 mm
Overall unit width A2: 35.7 mm
Dynamic Load Rating: 14000 N
Static Load Rating: 7880 N
Mounting: Oval Flange
