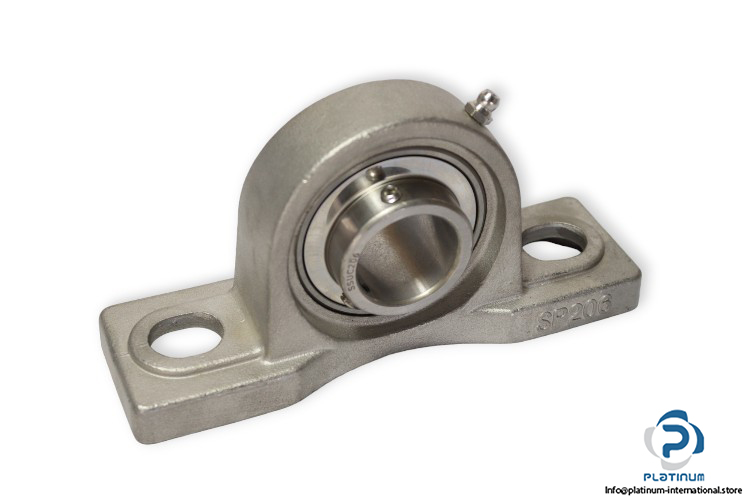

SUCSP206 Stainless Steel Pillow Block Ball Bearing Unit
New
Available on request
Type: Stainless Steel Pillow Block Ball Bearing Unit Model: SUCSP 206 Housing No.: SP206 Bearing No.: SSUC206
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
Type: Stainless Steel Pillow Block Ball Bearing Unit
Model: SUCSP 206
Housing No.: SP206
Bearing No.: SSUC206

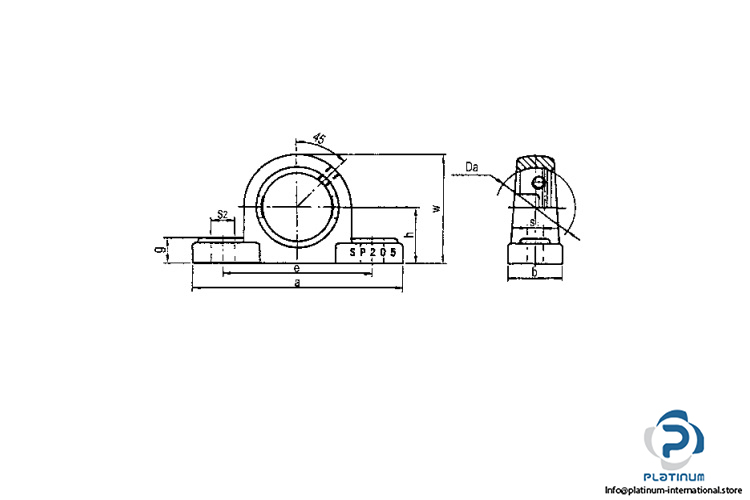

Dimensions
Bore Diameter d: 25 mm
Overall length a: 140 mm
Overall height w: 70 mm
Overall Width b: 38 mm
Distance Between Attachment Bolts e: 105 mm
Mounting hole length s2: 17.5 mm
Height of spherical seat center h: 36.5 mm
Housing type: Pillow Block
Material, housing: Stainless Steel
Retaining feature, inner ring: Set screws
