Danfoss 17D0023 Differential Pressure Switch
Interruptor de pressão diferencial Danfoss Interruptor de pressão diferencial 17D0023 com faixa de ajuste de pressão de 0,5 a 6 bar, tensão nominal de 400 V AC e saída de interruptor SPDT. Apresenta proteção IP66 e faixa de temperatura de -50 a 70°C, ideal para monitoramento e controle industrial.

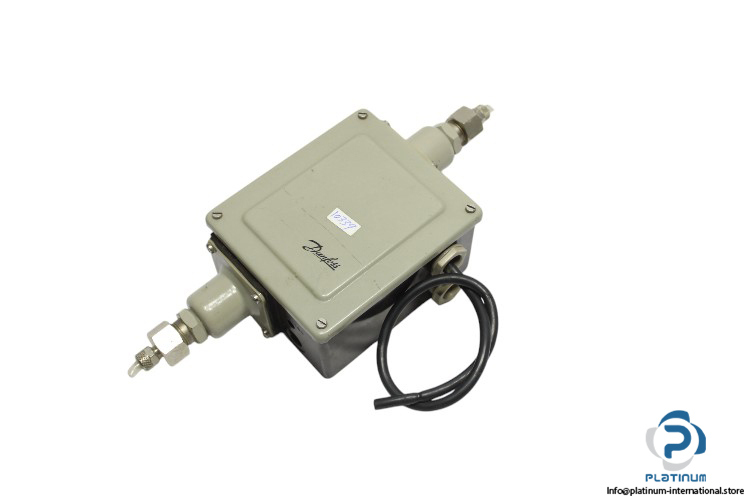

Danfoss Differential Pressure Switch 17D0023
The Danfoss Differential Pressure Switch 17D0023 is designed for reliable pressure monitoring and control in a variety of industrial applications. With a pressure setting range of 0.5 to 6 bar and a maximum working pressure of 42 bar, this switch ensures precise performance even under demanding conditions. It offers a rated voltage of 400 V AC and a rated current of 4 A. The switch features a SPDT output, making it ideal for use in both monitoring and control functions. Additionally, it has an IP66 protection class, ensuring its durability and resistance to harsh environmental conditions.
Manufacturer: Danfoss
Type: Differential Pressure Switch

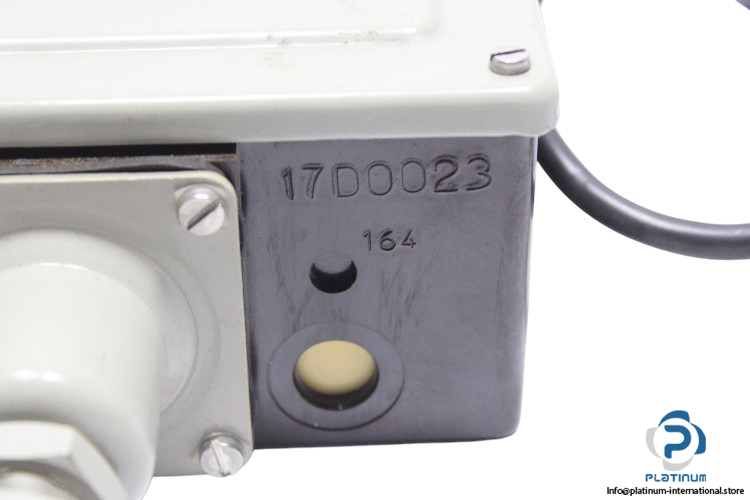

Model: 17D0023
Technical Specifications
- Pressure Setting Range: 0.5 / 6 bar
- Working Pressure Max.: 42 bar
- Test Pressure: 47 bar
- Rated Voltage: 400 V AC
- Rated Current: 4 A
- Switch Output: SPDT
- Pressure Connection Size: G 3/8
- Protection Class: IP66
- Temperature: -50 / 70 °C
- Dimensions: 303 x 110 x 74 mm
