Control Techniques 95UMC301CACAA Brushless AC Servo Motor

Name: CONTROL TECHNIQUES 95UMC301CACAA BRUSHLESS AC SERVO MOTOR
Brand: Control Techniques / Emerson
SKU: 975844
Price: 1000.00 USD
Availability: LimitedAvailability

control-techniques-95umc301cacaa-brushless-ac-servo-motor-1

control-techniques-95umc301cacaa-brushless-ac-servo-motor-2

control-techniques-95umc301cacaa-brushless-ac-servo-motor-3

Kullanılmış

Talep üzerine mevcut

1 000,00$

BRUSHLESS AC SERVO MOTOR

The 95UMC301CACAA brushless AC servo motor from Control Techniques / Emerson features 5.9 Nm stall torque, 98 V/Krpm voltage constant, and encoder feedback, making it ideal for Unidrive-based motion systems.

Üretici

Control Techniques / Emerson

SKU

975844

Kategori

Servo Motors

Koşul

Kullanılmış

4096 5.9 95UMC301CACAA AC Automation Brushless Control Emerson Encoder for Industrial motor Nm Servo Techniques Torque Unidrive

Paylaş

Geniş Stok

Küresel Nakliye

Uzman Destek

Kalite Garantili

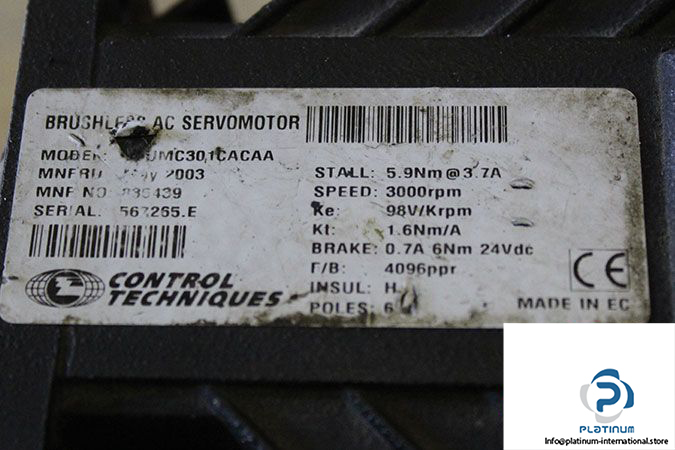

CONTROL TECHNIQUES / EMERSON 95UMC301CACAA BRUSHLESS AC SERVO MOTOR

This high-performance brushless AC servo motor is designed for use with Unidrive systems, offering precise speed and torque control for industrial automation applications. With advanced feedback and braking features, it delivers reliable operation across demanding environments.

Manufacturer: CONTROL TECHNIQUES / EMERSON

Type: BRUSHLESS AC SERVO MOTOR

Model: 95UMC301CACAA

MRN: 835439

Frame Size	95
Motor Type	For Unidrive
Stall Current	3.7 Arms
Voltage Constant	98 V/Krpm
Rated Speed	3000 Revolution Per Minute (rpm)
Stall Torque	5.9 Nm
Constant Torque	1.6 Nm/A
Voltage Brake	24 VDC
Current Brake	0.7 A
Torque Brake	6 Nm
Poles	6
Feedback Device	Incremental Encoder 4096 C/T
Connection Type	Connector (Std)
