Festo 548719 Multi-PIN Plug Socket
Kullanılmış
Stokta1 birimSevkiyata hazır
Çok pinli priz Festo Çok Pinli Priz NECA-S1G9-P9-MP1 (Parça No. 548719), 9 pinli Sub-D soket ve vida terminal bağlantılarına sahiptir ve endüstriyel uygulamalar için 24 V DC desteği sunar.
249-pinconnectionElectricalHousingIndustrialMulti-pinPA-reinforcedPlugreliablescrewSocketSub-DterminalV
Geniş Stok
Küresel Nakliye
Uzman Destek
Kalite Garantili

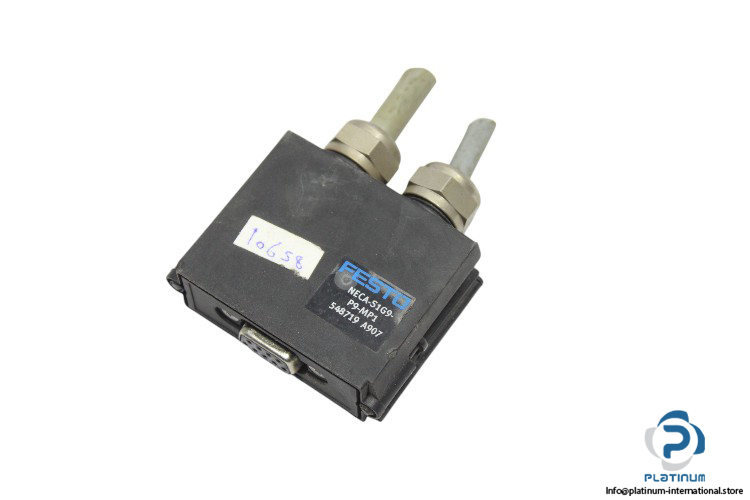

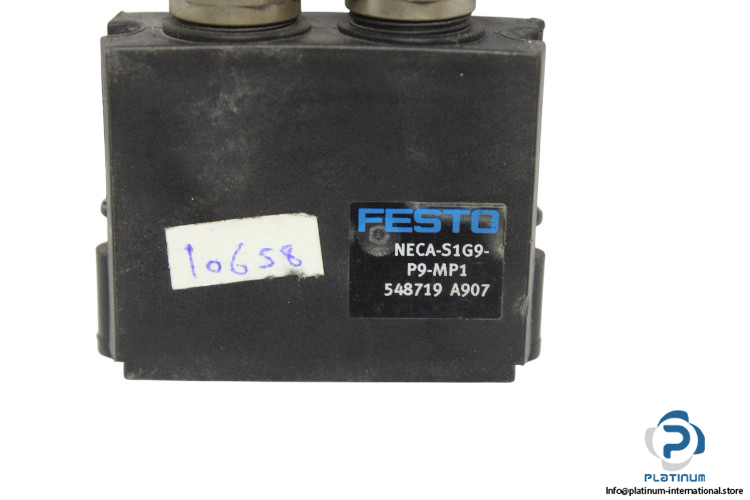

FESTO MULTI-PIN PLUG SOCKET
The Festo Multi-pin Plug Socket (Model: NECA-S1G9-P9-MP1, Part No. 548719) is designed for reliable electrical connections in industrial and automation systems. Featuring a 9-pin Sub-D socket and screw terminal connections, this plug socket supports a wide DC operating voltage range, ensuring versatile and efficient performance in various applications.
Manufacturer: Festo
Type: Multi-pin Plug Socket
Model: NECA-S1G9-P9-MP1
Part No.: 548719
Technical Specifications
- Type of Mounting: With through-hole
- Electrical Connection 1: Socket, Sub-D, 9-pin
- Electrical Connection 2: Screw terminal, 9-pin
- DC Operating Voltage Range: 21.6 V … 26.4 V
- Nominal Operating Voltage (DC): 24 V
- Current Rating at 40°C: 1 A
- Approved Cable Diameter: 5 mm … 10 mm
- Housing Material: PA-reinforced
