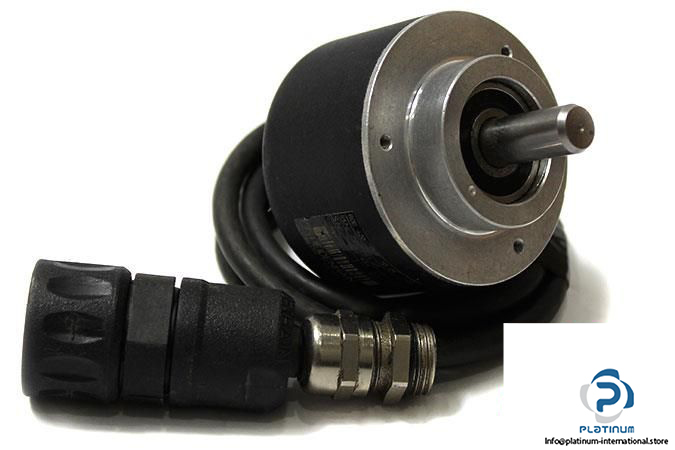

Heidenhain ROD 420-50-01-03 Incremental Encoder

Name: HEIDENHAIN ROD 420-50-01-03 INCREMENTAL ENCODER
Brand: HEIDENHAIN
SKU: 966124
Price: 325.00 USD
Availability: InStock


heidenhain-rod-420-50-01-03-incremental-encoder3_675x450

heidenhain-rod-420-50-01-03-incremental-encoder4_675x450

heidenhain-rod-420-50-01-03-incremental-encoder5_675x450




Kullanılmış

Stokta1 birimSevkiyata hazır

325,00$

ARTTIRIMLI ENKODER HEIDENHAIN ROD 420-50-01-03, 50 PPR çözünürlük ve TTL (RS 422) çıkış ile hassas hareket kontrolü sağlar. 5 VDC beslemesi ve IP67 koruma sınıfına sahip muhafazası gereken hassas endüstriyel otomasyon için idealdir.

Üretici

HEIDENHAIN

SKU

966124

Kategori

Rotary Encoders

Koşul

Kullanılmış

420-50-01-03 50 Control Encoder Feedback Heidenhain High-Speed Incremental Industrial IP67 Motion Positioning PPR ROD RS422 Sensor shaft Solid TTL

Paylaş

Geniş Stok

Küresel Nakliye

Uzman Destek

Kalite Garantili

HEIDENHAIN ROD 420-50-01-03 INCREMENTAL ENCODER

Engineered by HEIDENHAIN, the ROD 420-50-01-03 is a precision incremental encoder designed to deliver accurate position feedback in demanding industrial environments. With a durable construction and high resolution, it is ideal for automation systems and motion control applications.

Manufacturer: HEIDENHAIN

Type: Incremental Encoder

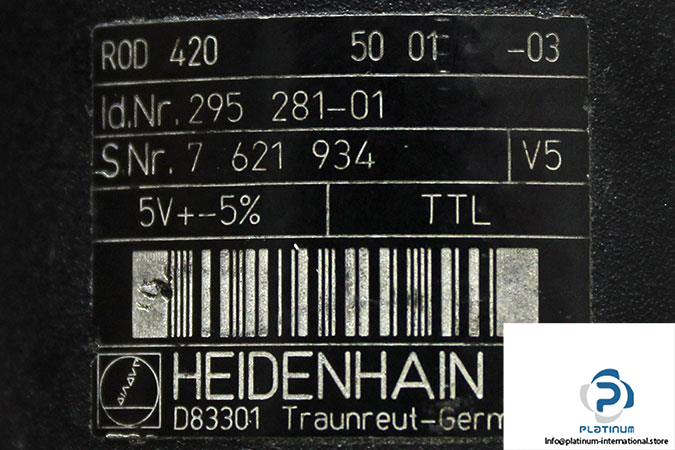

Model: ROD 420-50-01-03

ID No.: 295 281-01

S No.: 7 621 934

Flange Design	Synchro Flange
Shaft Design	Solid Shaft
Shaft Diameter	10 mm
Voltage Supply	5 VDC
Resolution	50 Pulse per Revolution (PPR)
Max. Current Consumption	120 mA
Signal Output	TTL (RS 422)
Mechanical Speed	16000 rpm
Max. Pulse Frequency	300 kHz
Protection Class	IP67 at housing, IP64 at shaft inlet
Max. Operating Temperature	100 °C
