Heidenhain ROD 426.0003-3600 Incremental Encoder

Name: HEIDENHAIN ROD 426.0003-3600 INCREMENTAL ENCODER
Brand: HEIDENHAIN
SKU: 966128
Price: 190.00 USD
Availability: InStock

heidenhain-rod-426-0003-3600-incremental-encoder-1

heidenhain-rod-426-0003-3600-incremental-encoder-2

heidenhain-rod-426-0003-3600-incremental-encoder-3

Kullanılmış

Stokta1 birimSevkiyata hazır

190,00$

ARTIMLI ENKODER HEIDENHAIN ROD 426.0003-3600, 3600 PPR çözünürlük, TTL çıkış ve maksimum 16000 rpm hızına sahip. 6 mm sağlam mil ve IP67 koruması ile endüstriyel hassasiyet için üretilmiştir.

Üretici

HEIDENHAIN

SKU

966128

Kategori

Rotary Encoders

Koşul

Kullanılmış

3600 426.0003-3600 6mm Encoder Flange Heidenhain High-Speed Incremental Industrial IP67 PPR ROD RS422 shaft Synchro TTL

Paylaş

Geniş Stok

Küresel Nakliye

Uzman Destek

Kalite Garantili

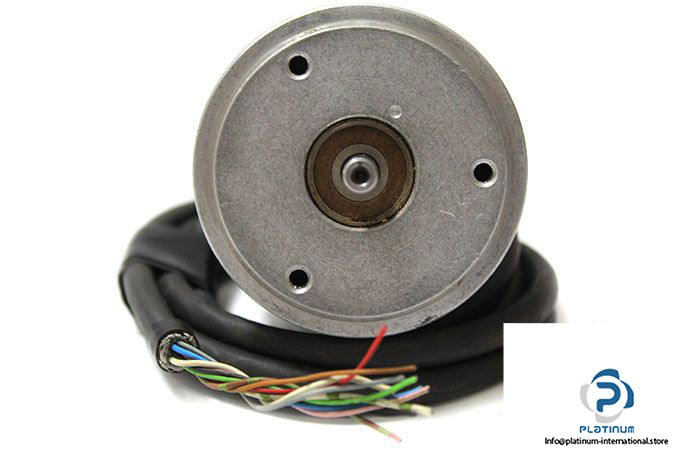

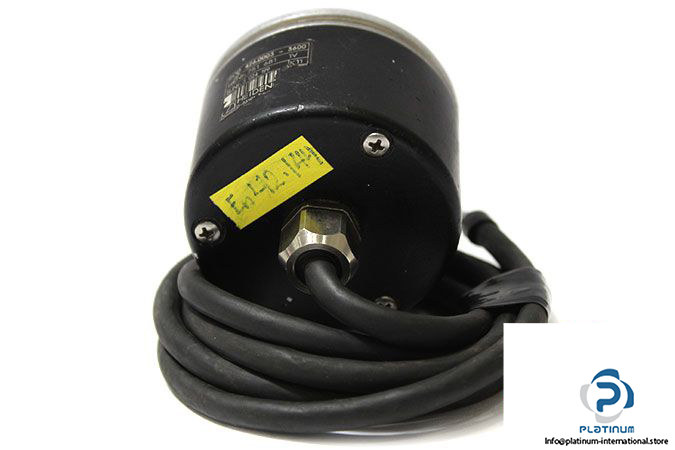

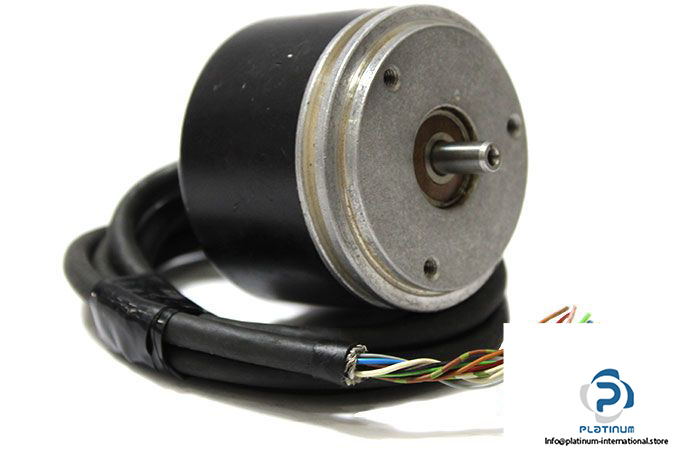

HEIDENHAIN ROD 426.0003-3600 INCREMENTAL ENCODER

The HEIDENHAIN ROD 426.0003-3600 is a high-precision incremental encoder designed for demanding industrial automation systems. Engineered for accuracy and durability, it offers high-resolution feedback and is suitable for high-speed rotational monitoring.

Manufacturer: HEIDENHAIN

Type: Incremental Encoder

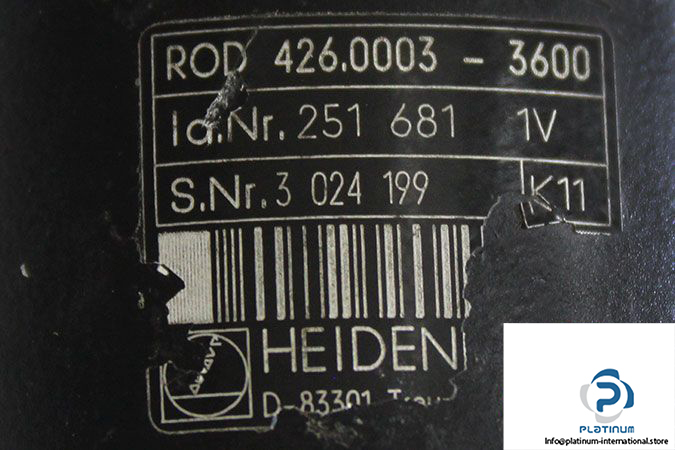

Model: ROD 426.0003-3600

ID No.: 251 681 1V

Serial No.: 3 024 199

Flange Design	Synchro flange
Shaft Design	Solid shaft
Shaft Diameter	6 mm
Voltage Supply	5 VDC
Resolution	3600 Pulses per Revolution (PPR)
Max. Current Consumption	120 mA
Signal Output	TTL (RS 422)
Max Speed	16000 rpm
Max. Pulse Frequency	300 kHz
Protection Class	IP67 (housing), IP64 (shaft inlet)
Max Temperature	100 °C
