Mitsubishi SD-Q11 Contactor

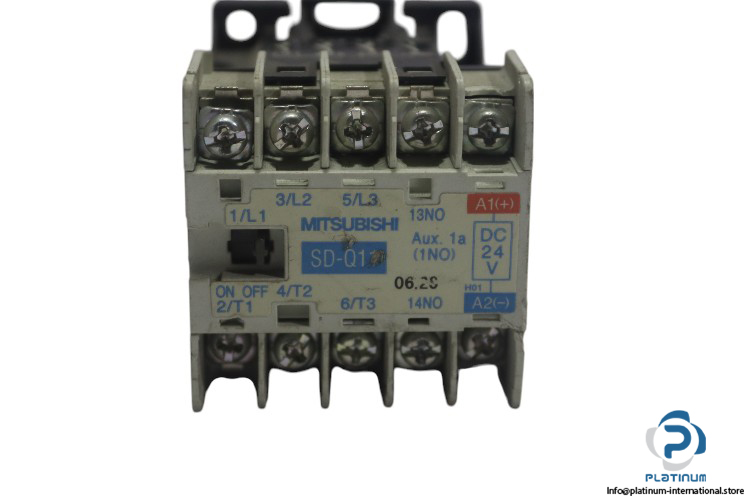

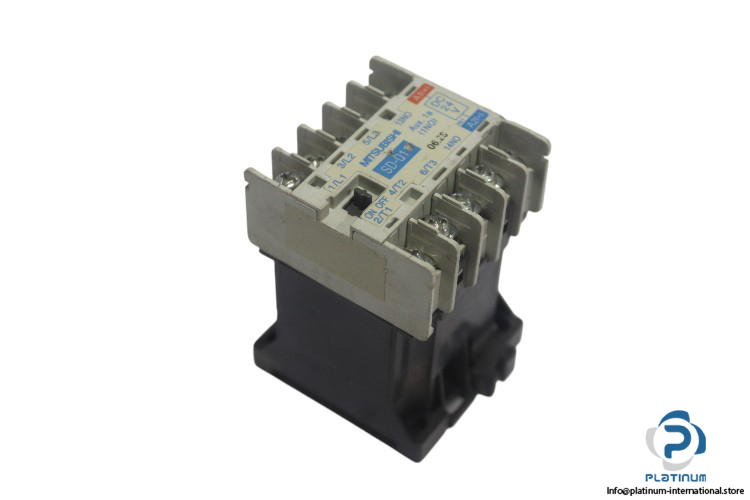

Mitsubishi SD-Q11 Magnetic Contactor

The Mitsubishi SD-Q11 Magnetic Contactor is a high-performance DC-operated contactor designed for reliable power control in industrial applications. This non-reversing contactor is built with a frame size of 11, offering exceptional performance and compliance with international standards for industrial control systems.

Manufacturer: MITSUBISHI

Type: Magnetic Contactor

Model: SD-Q11

Technical Data:

• Type: Non-Reversing, DC Operated
• Frame Size: 11
• Current Type: DC Type
• Coil Voltage (V): 24
• Rated Current (A): 9 (3-Phase AC380-440V)
• Rated Capacity (kW):
  • 3-Phase AC220-240V: 3 kW
  • 3-Phase AC380-440V: 4 kW
• Rated Voltage (V): 690
• Number of Poles: 3
• Number of Auxiliary Contacts (NO): 1
• Frequency Range (Hz): 50/60
• Min. Ambient Temperature (°C): -10
• Max. Ambient Temperature (°C): 40
• Wiring: Screw-Clamp
• Compliant with Standard(s): EN60947-4-1, IEC60947-4-1, JIS C8201-4-1
• Protection Class: IP20
