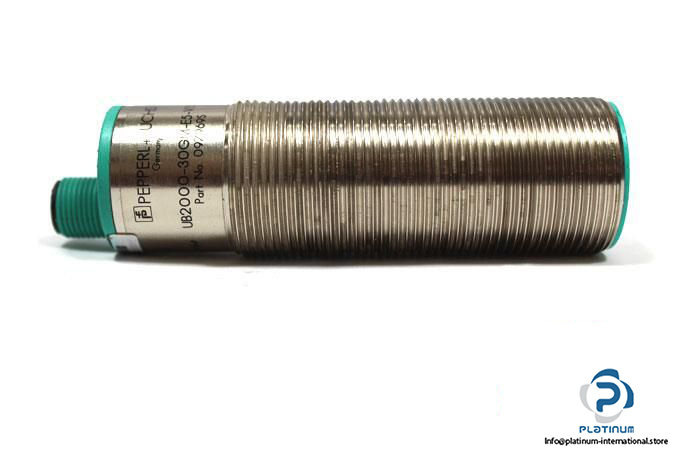

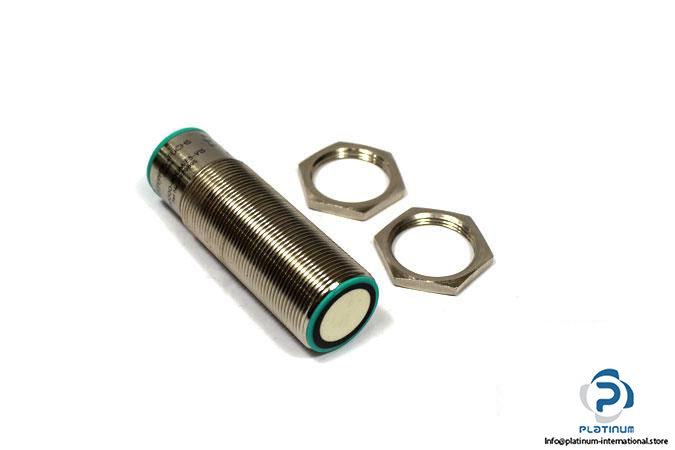

Pepperl+Fuchs UB2000-30GM-E5-V15 Ultrasonic Sensor
265,00$
Manufacturer: PEPPERL FUCHS
Type: ULTRASONIC SENSOR

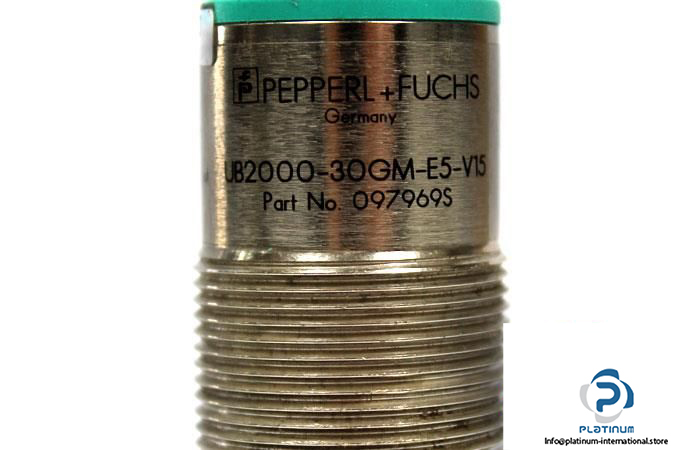

Model No.: UB200030GME5V15
Part No.: 097969S
Sensing range: 80 … 2000 mm
Adjustment range: 120 … 2000 mm
Standard target plate: 100 x 100 mm
Response delay: approx. 150 ms

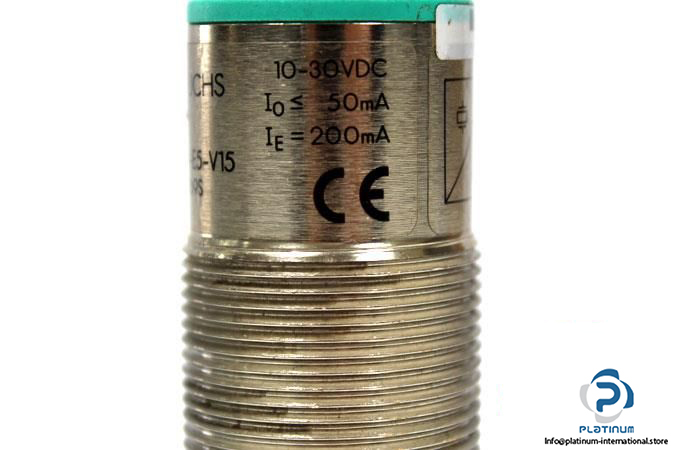

Operating Voltage: 10 … 30 V DC
Operating Current: 200 mA
Transducer frequency: approx. 180 kHz
Switching frequency: 0.3 Hz
Electrical design: PNP
Switching output: Normally open/Normally closed (Programmable)

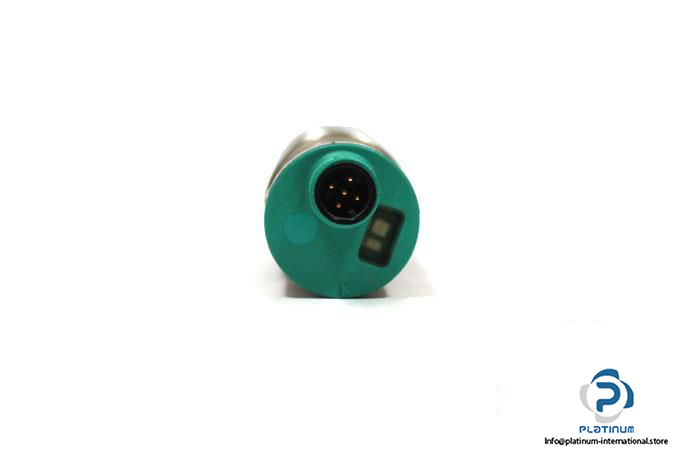

Connector type: M12 Connector, 5-pin
Protection class: II
Enclosure rating: IP65
Ambient Operating temperature: -25 … 70°C
Diameter, housing length: 30, 94 mm
Weight: 140 g
Housing material: Nickel plated brass; plastic components: PBT
Sensing face material: epoxy resin/hollow glass sphere mixture; polyurethane foam
Condition: New
