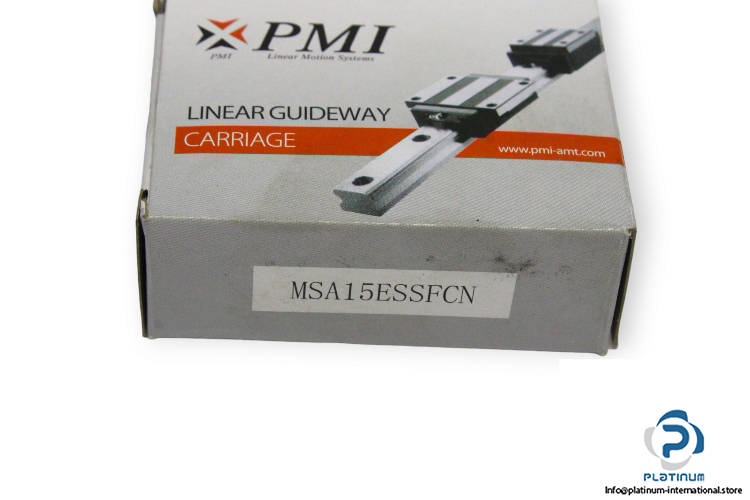

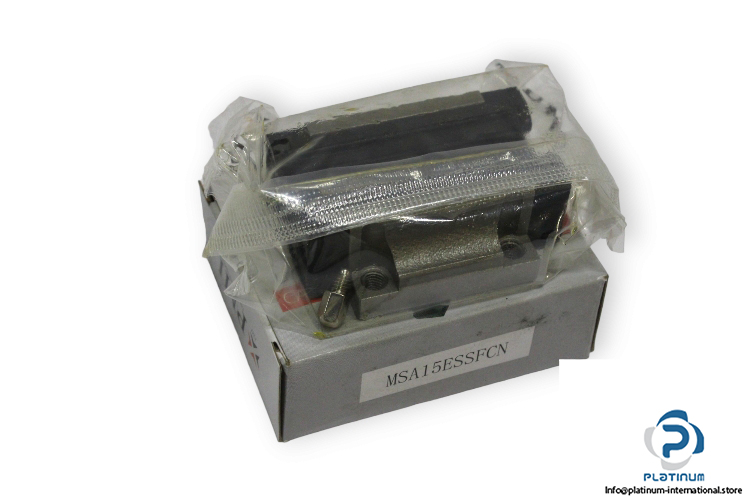

PMI MSA15ESSFCN Linear Guideway Block

Manufacturer: PMI
Type: Linear Guideway Block
Model: MSA 15 ESSFCN

Size: 15 mm
Carriage type: Heavy load, E: Flange type
Preload grade: FC; Light preload
Basic Load Ratings:
Dynamic C: 11.8 kN
Static C₀: 18.9 kN
Accuracy Grade: N, Normal
Dimensions:
Height system H: 24 mm
Width carriage W: 47 mm
Overall length carriage L: 56.3 mm
L₁: 39.3 mm
B: 38 mm
C: 30 mm
Contamination Protection: SS; Bidirectional end seal+Bottom seal
