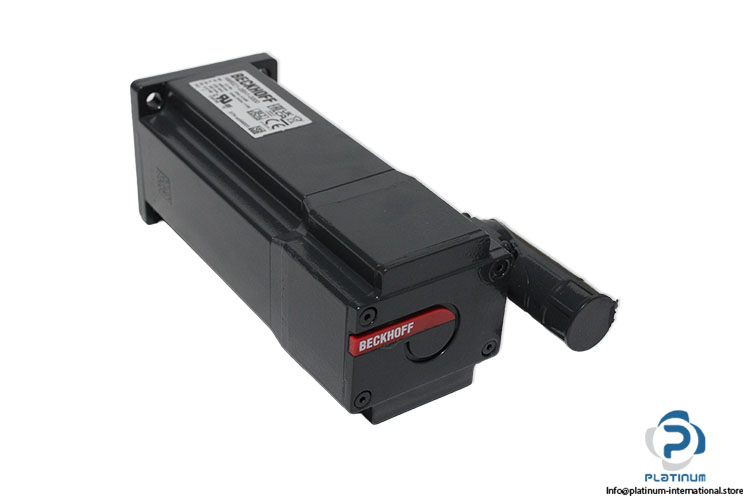

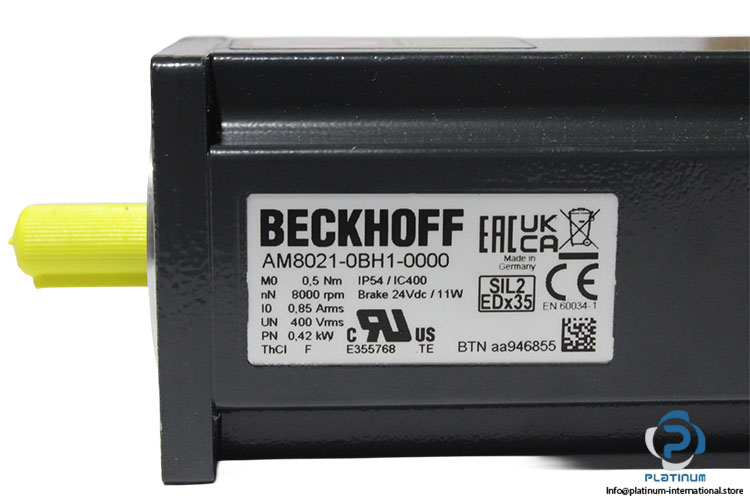

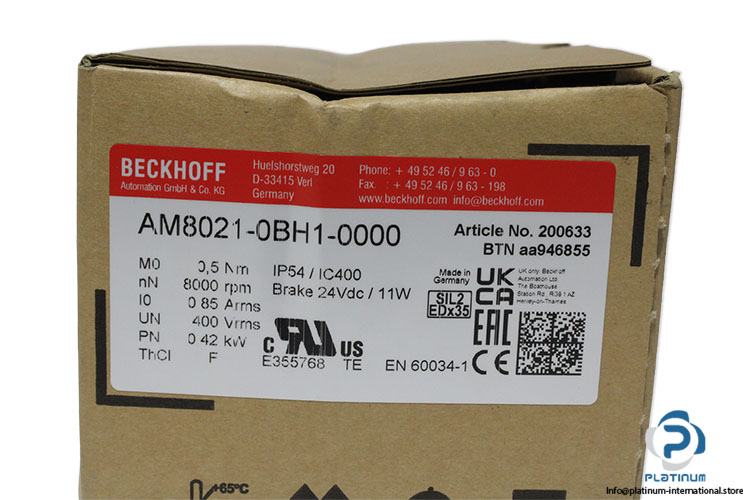

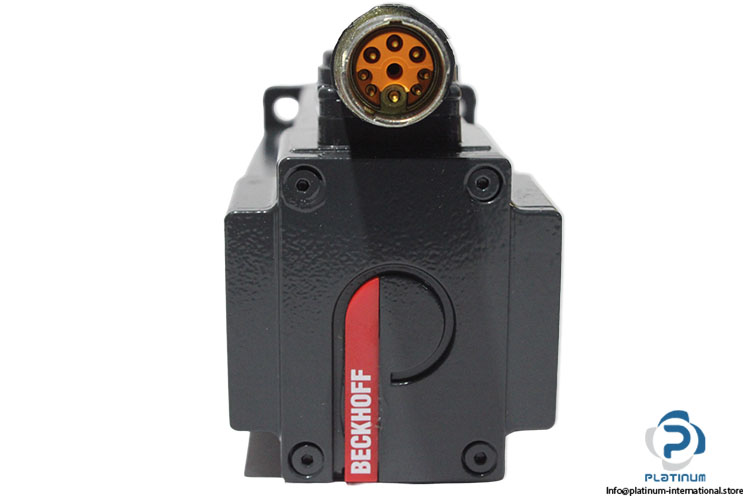

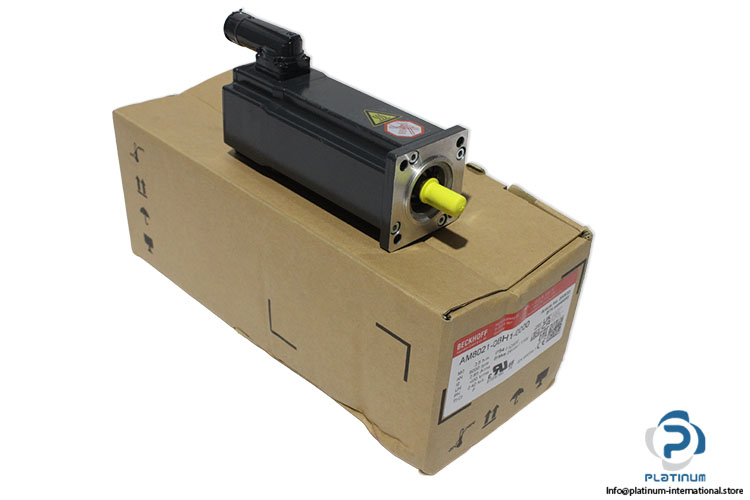

Beckhoff AM8021-0BH1-0000 Servomotor
جديد
متوفر3 وحداتجاهز للشحن
1 111,11$
Servomotor The Beckhoff AM8021-0BH1-0000 servomotor delivers high dynamic performance with 400 V operation, 8000 rpm speed, 0.5 Nm stall torque, integrated brake, and advanced encoder feedback for demanding motion control applications.
400VACAM8021AutomationBeckhoffControlDriveDynamicEncoderFeedbackFlangeHighIndustrialMotionmotormountedsServoServomotorSolutionsSpeed
مخزون ضخم
شحن عالمي
دعم من خبراء
جودة مضمونة
| Part No. | 200633 |
| BTN stands | aa946855 |
| Rated Voltage | 400 V |
| Rated Speed | 8000 rpm |
| Stall Torque | 0.5 Nm |
| Rated Power | 0.42 KW |
| Stall Current | 0.85 A |
| standard | EN 60034-1 /E355768 |
| Thermal class | F |
| Brake voltage,power | 24Vdc / 11W |
| suitable for | drive solutions with highest demands on dynamics and performance in the 100…480 V AC voltage range |
| Torque constant | 0.588 Nm/A |
| Rotor moment of inertia | 0.139 kgcm² |
| Motor feedback | resolver, single-turn absolute encoder |
| Cooling | convection |
| Connection technology | itec® plug, Rotatable right-angled connector |
| Ambient temperature (operation) | 5…40°C |
| Protection rating | IP54 |
| Design form | flange-mounted according to IM B5, IM V1, IM V3 |
| Material | aluminum |
| Coating/surface | acrylic powder-coated, dark gray, similar to RAL7016 |
| Shaft diameter | 9 mm |
| Stock Key | JO-004 |
| Condition | New |
| SKU | 1096836 |
| Weight | 1,45 |
