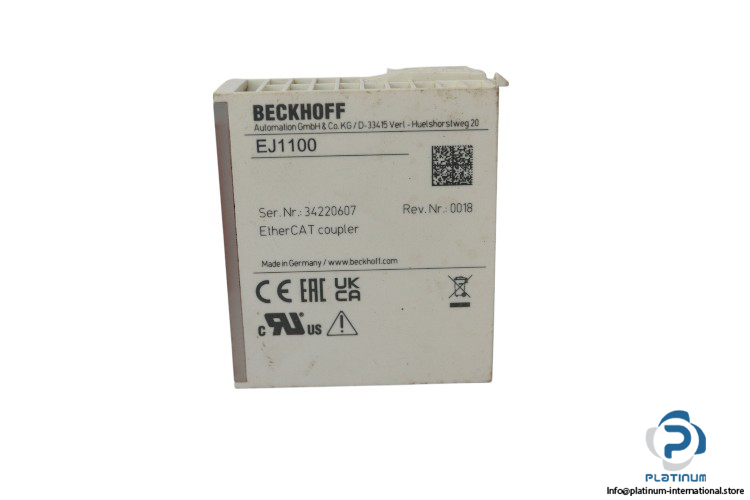

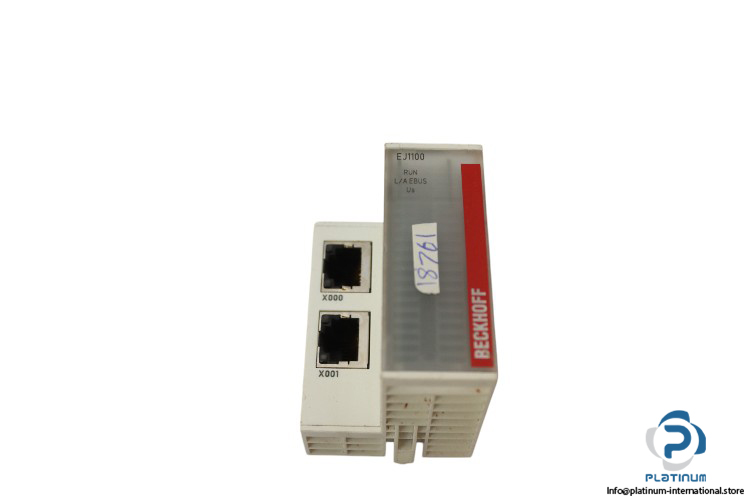

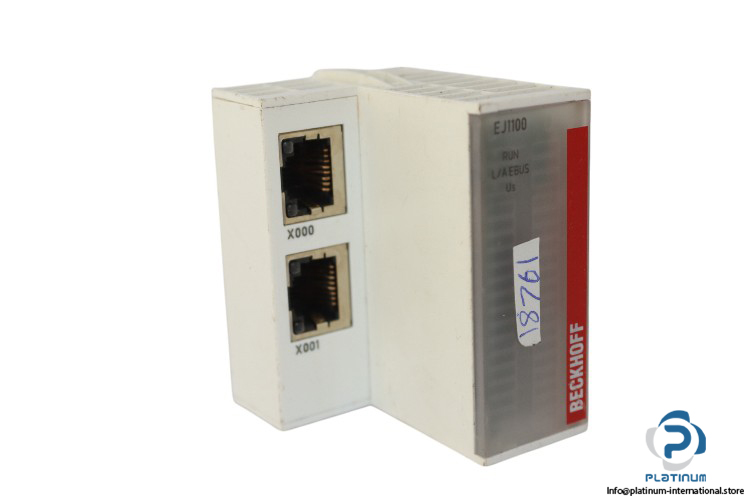

Beckhoff EJ1100 EtherCAT Coupler

The Beckhoff EJ1100 EtherCAT Coupler is designed to connect EtherCAT devices in industrial Ethernet networks, enabling fast and reliable communication. This coupler operates with a 24 V DC power supply and provides a current supply of 2200 mA to the E-bus, ensuring seamless integration with EtherCAT systems. With electrical isolation of 500 V and a data transfer rate of 100 Mbit/s, it supports the EtherCAT protocol, ensuring high-speed data exchange. The coupler features a field wiring connection method with application-specific wiring levels on the signal distribution board and utilizes a 2 x 20-pin socket strip for the EJ plug-in module. Its compact design allows easy installation on signal distribution boards, and it offers a maximum distance of 100 m between stations using 100BASE-TX connections. The unit operates in environments with temperatures ranging from -25°C to +60°C, providing a reliable and robust solution for industrial networking needs.

Manufacturer: Beckhoff

Type: EtherCAT Coupler

Model: EJ1100

Offering a reliable and fast connection for EtherCAT systems, the EJ1100 EtherCAT Coupler ensures efficient communication and integration in industrial applications.
