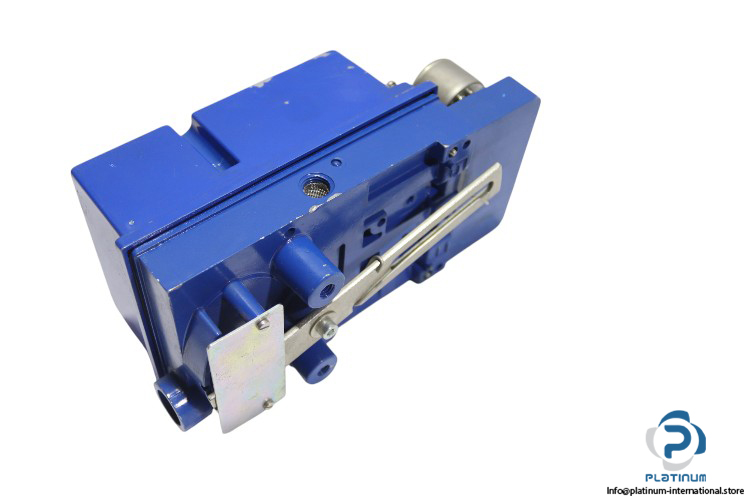

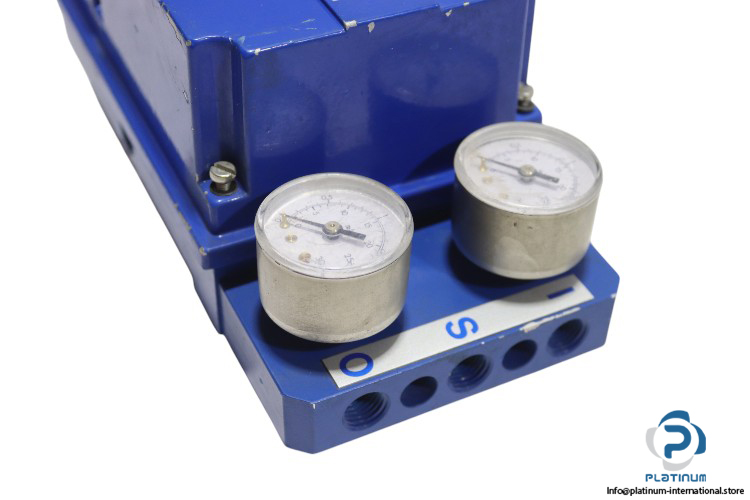

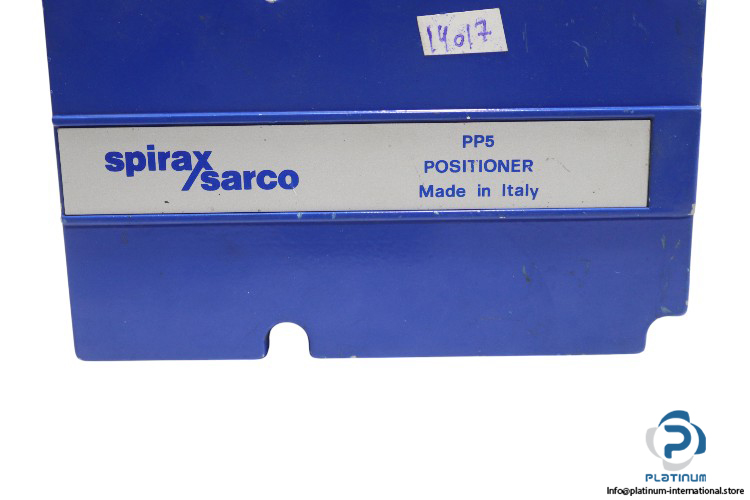

Spirax Sarco PP5 Pneumatic Positioner
مستعمل
متوفر1 وحدةجاهز للشحن
599,99$
Pneumatic Positioner
Spirax Sarco PP5 Pneumatic Positioner with adjustable amplification, 10 to 100 mm stroke range, and a protection class of IP65. Designed for precise control with air consumption ranging from 0.2 Nm3/h to 0.7 Nm3/h.
مخزون ضخم
شحن عالمي
دعم من خبراء
جودة مضمونة
Spirax Sarco Pneumatic Positioner PP5
The Spirax Sarco PP5 Pneumatic Positioner is designed for precise control and regulation in pneumatic systems. It offers adjustable amplification and a wide range of stroke options, ensuring versatility and performance in demanding industrial environments.
Manufacturer: Spirax Sarco
Model: PP5
Type: Pneumatic Positioner
| Inlet Control Signal | 0.2 to 1 bar |
| Outlet Loading Signal | 0.2 to 1 bar or 0.4 to 2 bar |
| Air Consumption | 0.2 Nm3/h (supply at 1.4 bar) “ 0.7 Nm3/h (supply at 6 bar) |
| Maximum Air Flow | 3.5 Nm3/h |
| Ambient Temperature Effect | Maximum +80°C, Minimum -20°C |
| Stroke Range | 10 to 100 mm |
| Amplification | Adjustable |
| Pneumatic Connection | 1/8 inch |
| Protection Class | IP65 |
| Material Base Plate and Cover | Die cast aluminum with anti-corrosive paint |
المزيد من Spirax Sarco
مستعمل
Spirax Sarco
SPIRAX SARCO DN50 PN16 LE33 Control Valve
SKU: 2004704
الكمية: 2
متاح عبر طلب عرض سعر
مستعملمتاح عند الطلب
Spirax Sarco

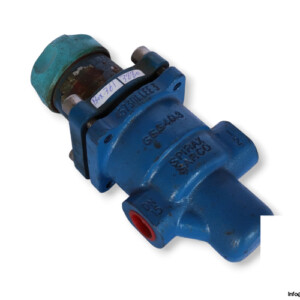

Spirax Sarco GGG40.3 Direct Acting Pressure Reducing Valve
