Spirax Sarco PP5 Pneumatic Positioner
Usado
En stock1 unidadListo para enviar
599,99$
Pneumatic Positioner
Spirax Sarco PP5 Pneumatic Positioner with adjustable amplification, 10 to 100 mm stroke range, and a protection class of IP65. Designed for precise control with air consumption ranging from 0.2 Nm3/h to 0.7 Nm3/h.
Inventario Masivo
Envío global
Soporte experto
Calidad Garantizada

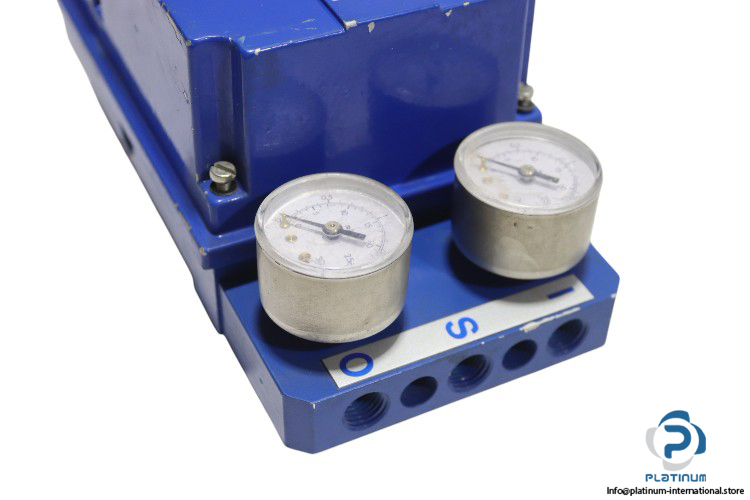

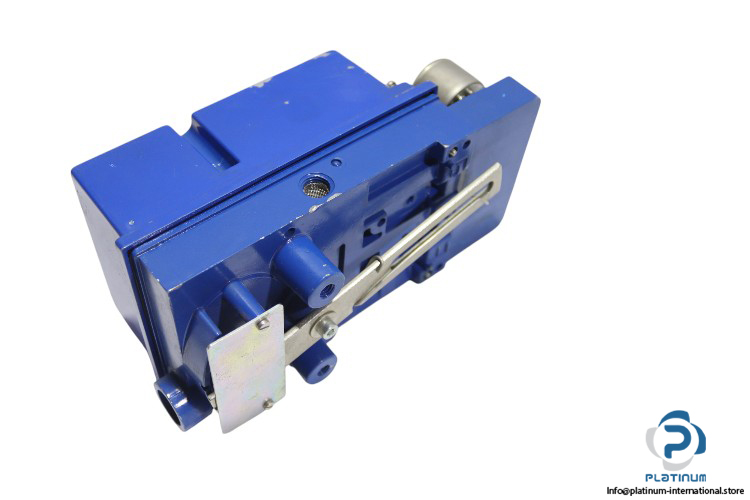

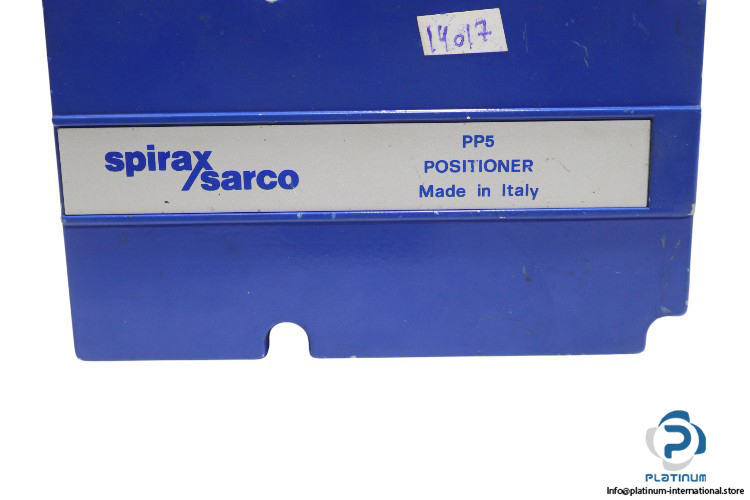

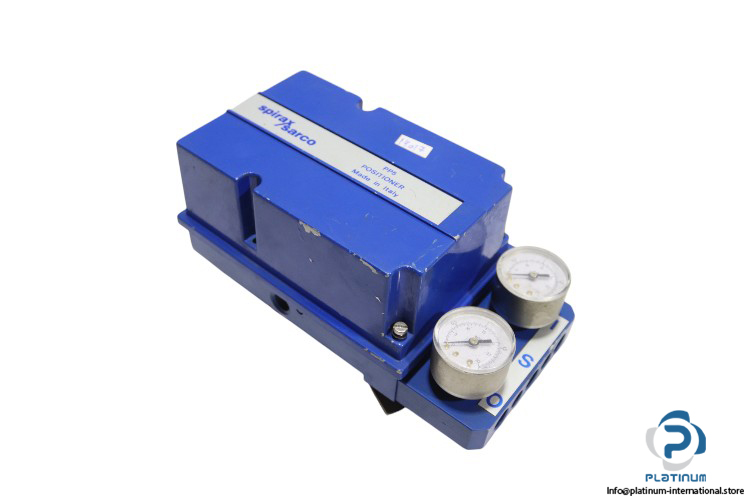

Spirax Sarco Pneumatic Positioner PP5
The Spirax Sarco PP5 Pneumatic Positioner is designed for precise control and regulation in pneumatic systems. It offers adjustable amplification and a wide range of stroke options, ensuring versatility and performance in demanding industrial environments.
Manufacturer: Spirax Sarco
Model: PP5
Type: Pneumatic Positioner
| Inlet Control Signal | 0.2 to 1 bar |
| Outlet Loading Signal | 0.2 to 1 bar or 0.4 to 2 bar |
| Air Consumption | 0.2 Nm3/h (supply at 1.4 bar) “ 0.7 Nm3/h (supply at 6 bar) |
| Maximum Air Flow | 3.5 Nm3/h |
| Ambient Temperature Effect | Maximum +80°C, Minimum -20°C |
| Stroke Range | 10 to 100 mm |
| Amplification | Adjustable |
| Pneumatic Connection | 1/8 inch |
| Protection Class | IP65 |
| Material Base Plate and Cover | Die cast aluminum with anti-corrosive paint |
