Alcatel ACT 200 T Turbo Pump Controller
Usado
Disponible bajo solicitud
999,99$
Controlador de bomba turbo Alcatel ACT 200T con múltiples funciones de control que incluyen velocidad de rotación, ventilación, arranque automático y programación de mantenimiento. Ofrece interfaces RS 232/485 para procesos controlados por PC/PLC.
232485AdjustableAlcatelAutoControlControllerCurrentIndustrialInterfacesMaintenancemotorPc/PlcpumpRemoteRSScheduleStartTurboVenting
Inventario Masivo
Envío global
Soporte experto
Calidad Garantizada

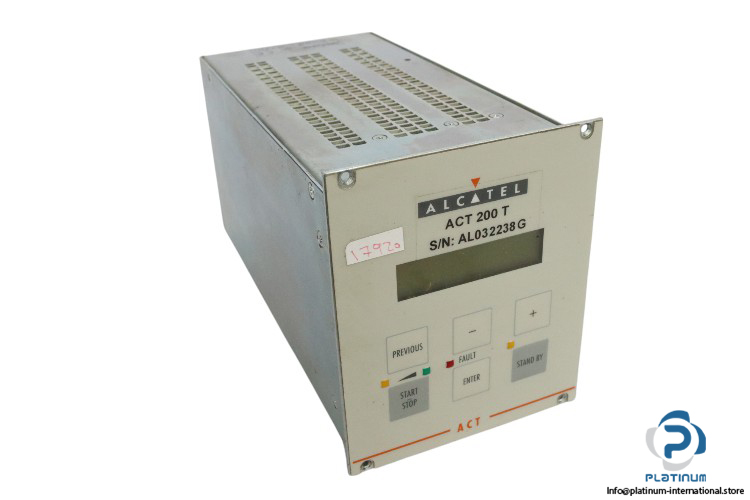

Alcatel Turbo Pump Controller ACT 200T
Alcatel Turbo Pump Controller ACT 200T is a versatile and reliable pump controller, offering precise control over various pump operations. It is designed to manage rotational speed, venting, auto start, start delay, and maintenance schedules with ease. Below are the key technical specifications:
- Manufacturer: Alcatel
- Type: Turbo Pump Controller
- Model: ACT 200T

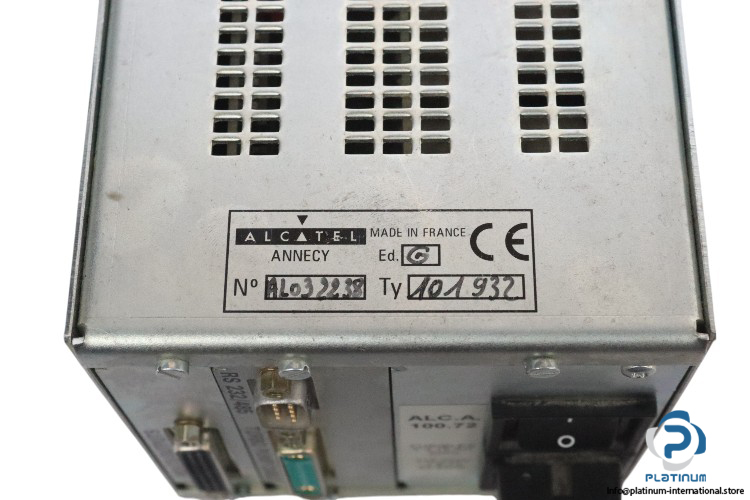

- Part No.: AL032238 / 101G32 / ALC.A.100.72
Technical Data:
- Nominal Voltage: 115 to 230 V
- Frequency: 48 to 63 Hz
- Current: 1.8 to 1 A
- Delayed Fuses: 3.15 A at 250V

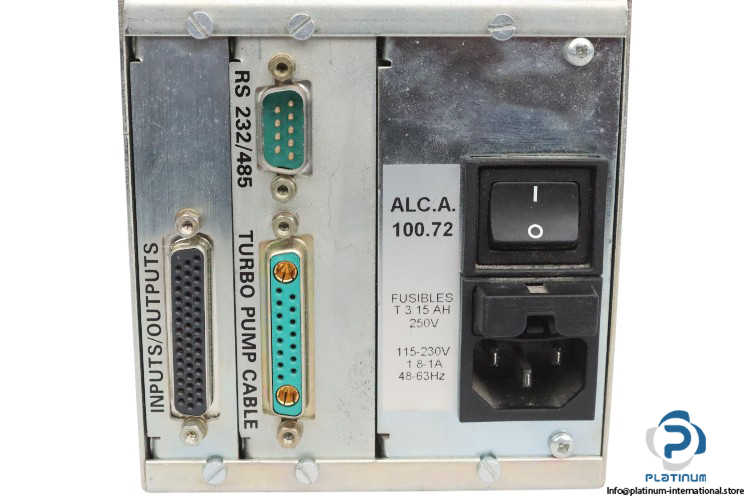

- Multiple Interfaces: PC/PLC controlled processes via RS 232/485 (configurable), Remote control
- Control of:
- Rotational speed
- Venting
- Auto start
- Start delay
- Maintenance schedule
- Inputs:
- Remote start/stop
- Remote stand-by
- Remote interlock
- Outputs:
- Pump starting
- Pump at speed
- Stand-by on
- Venting valve on/off
- Power supply of air cooling fan
- Selectable 0-10 volts output
- Ambient Operating Temperature: max. 50°C
- Dimensions: 217 x 107 x 128.4 mm
