Crouzet 80835002 DC Gearmotor
Nuevo
En stock5 unidadesListo para enviar

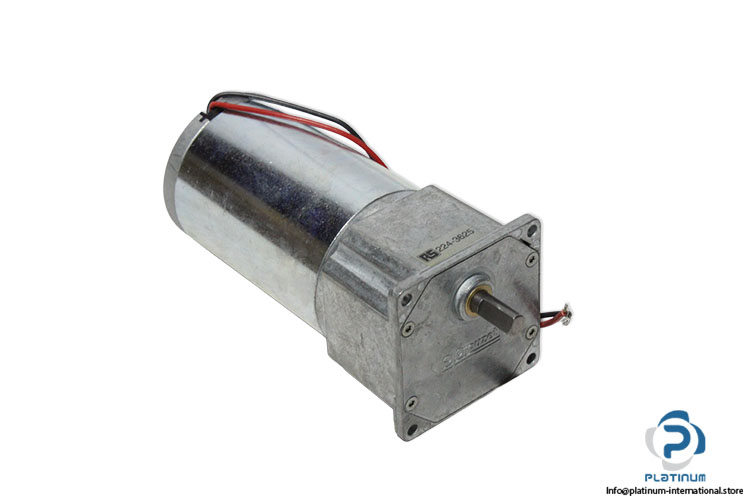

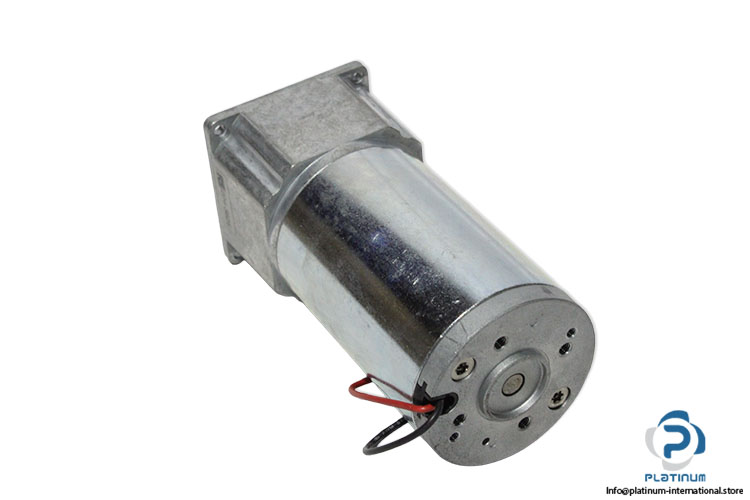

Brushed DC Gearmotor The Crouzet 80835002 brushed DC gearmotor delivers reliable 24V performance with 74 rpm output speed, 5 Nm torque, 24.5 reduction ratio, and durable cable-connected construction for industrial motion applications.
24v80835002AutomationBrushedControlCrouzetdcElectricGearedGearmotorHighIndustrialMotionmotorTorqueUL1004
Inventario Masivo
Envío global
Soporte experto
Calidad Garantizada

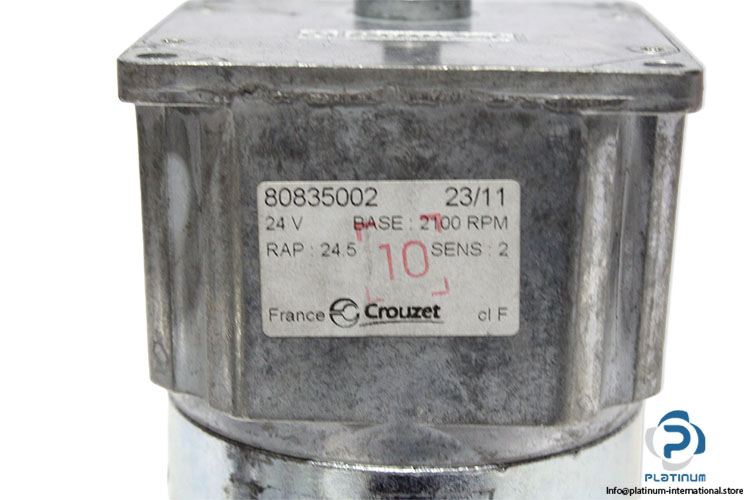

| Code | 23/11 |
| Rated Voltage(VDC) | 24 |
| Output speed (rpm) | 74 |
| Rated Speed | 2100 |
| SENS | 2 |
| Reduction Ratio | 24.5 |
| Maximum permitted torque from gearmotor under continuous conditions (Nm) | 5 |
| Axial load dynamic (daN) | 6 |
| Radial load dynamic (daN) | 6 |
| Max. output power (W) | 33 |
| Nominal output (W) | 27 |
| Gearbox case temperature rise (°C) | 50 |
| Approvals | UL 1004 |
| Shaft | 8 mm diameter output shaft |
| Insulation class | F |

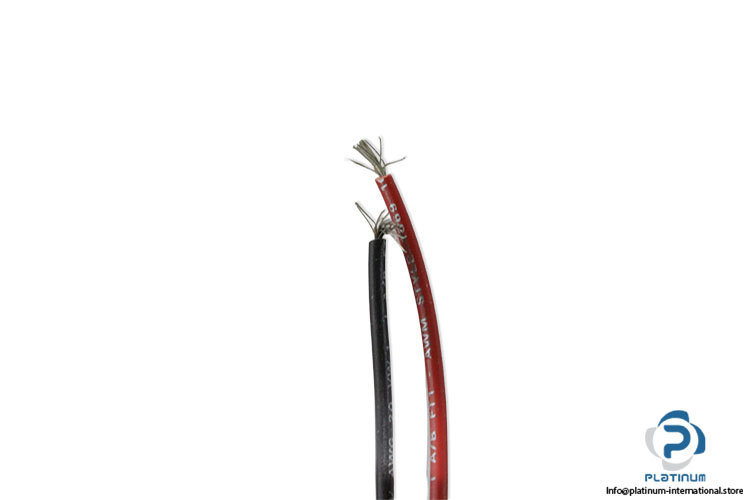

| Connection | Cable |
| Stock key | jo-004 |
| Condition | New |
| SKU | 1096911 |
| Weight | 1,65 |
