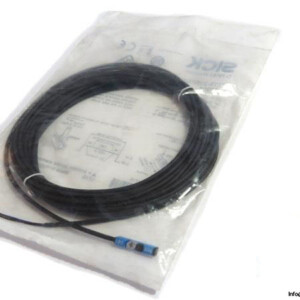

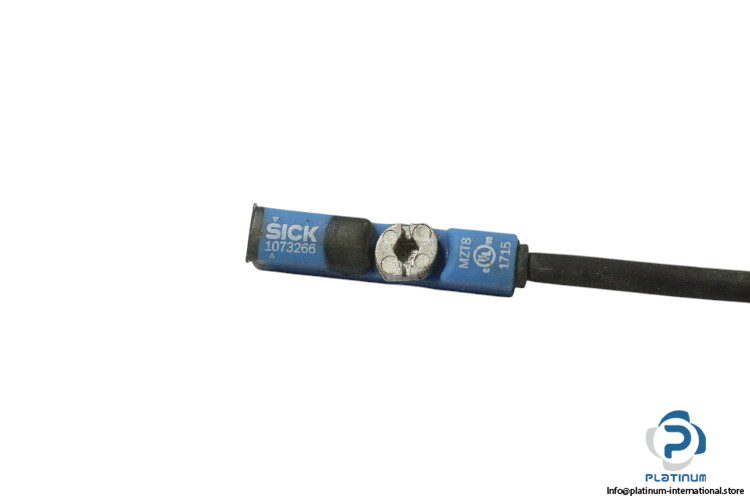

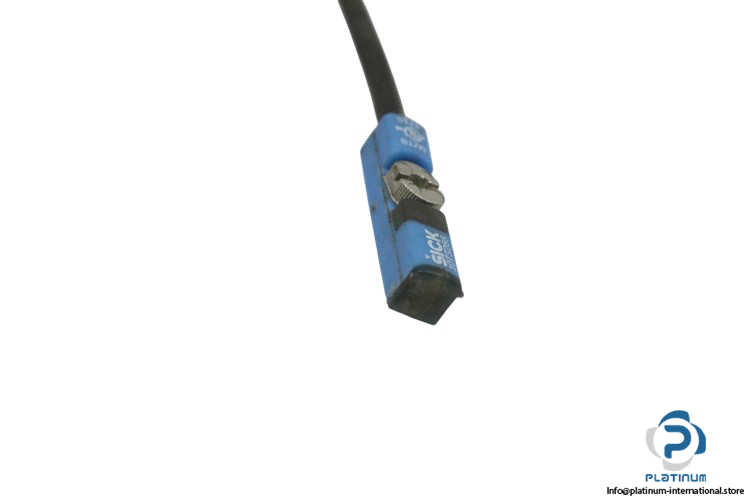

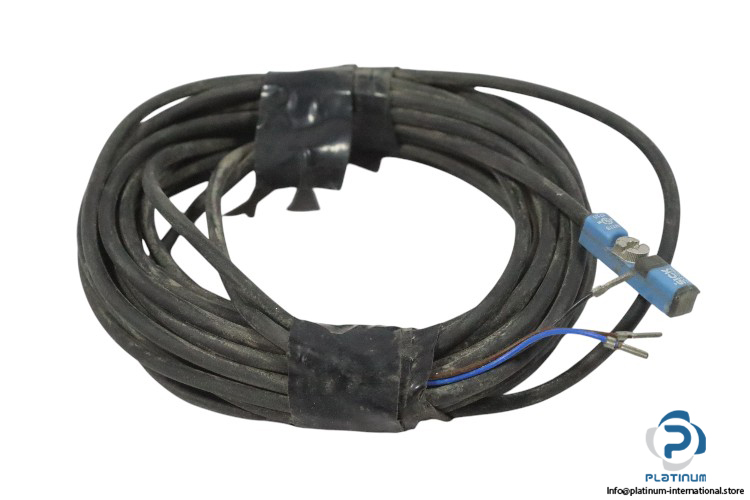

Sick MZT8-2V6PSAKUB Magnetic Cylinder Sensor
Capteur de cylindre magnétique Sick MZT8-2V6PSAKUB Capteur fiable pour la détection des cylindres magnétiques avec distance de dépassement de 3 mm, tension d'alimentation 10-30V DC, fréquence de commutation 1000 Hz, et protection IP68/IP69K. Comprend un câble PUR 3 fils de 5 mètres.
Sick Magnetic Cylinder Sensor MZT8-2V6PSAKUB
The Sick Magnetic Cylinder Sensor MZT8-2V6PSAKUB is a robust and reliable sensor designed for use in industrial automation applications. It is ideal for detecting the position of magnetic cylinders with high precision. With an overrun distance of 3 mm and a supply voltage range of 10 to 30 V DC, this sensor offers excellent performance in various environments. The sensor operates with a continuous current of 200 mA and has a switching frequency of 1000 Hz, ensuring quick and accurate signal transmission. The 5-meter cable with a 3-wire PUR connection provides flexibility in installation. The sensor is protected by IP68 and IP69K enclosures, making it resistant to dust, water, and high-pressure cleaning. It operates in a wide temperature range from -30°C to +80°C.
| Part No. | 1073266 |
| Overrun Distance | 3 mm |
| Supply Voltage | 10 … 30 V DC |
| Continuous Current (Ia) | 200 mA |
| Power Consumption (without load) | 10 mA |
| Voltage Drop | 2.2 V |
| Switching Output | PNP |
| Switching Frequency | 1000 Hz |
| Connection Type | 3-wire PUR Cable, 5 m |
| Protection Class | Class 2 |
| Enclosure Rating | IP68, IP69K |
| Ambient Operating Temperature | -30 … +80°C |
| Housing Length | 24 mm |
