Balluff BES 516-3005-G-E4-C-S49-00.3 Inductive Proximity Sensor
New
In stock1 unitReady to ship

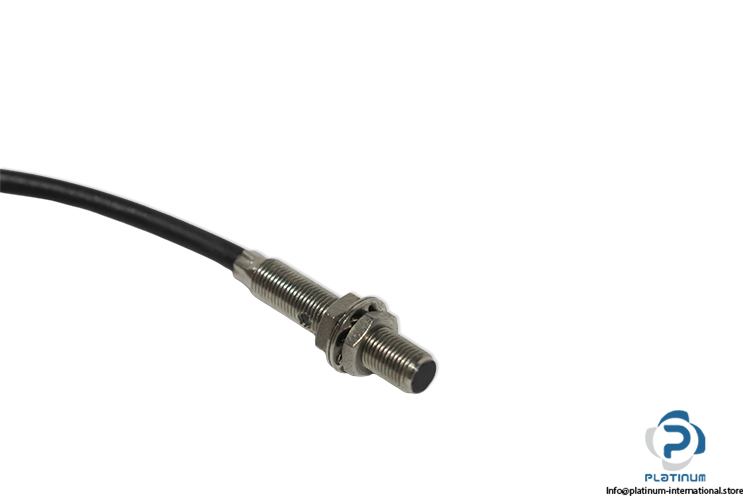

Inductive Proximity Sensor The BALLUFF BES 516-3005-G-E4-C-S49-00.3 is an industrial proximity sensor with PNP NO output, Stainless steel housing, for reliable automation applications.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

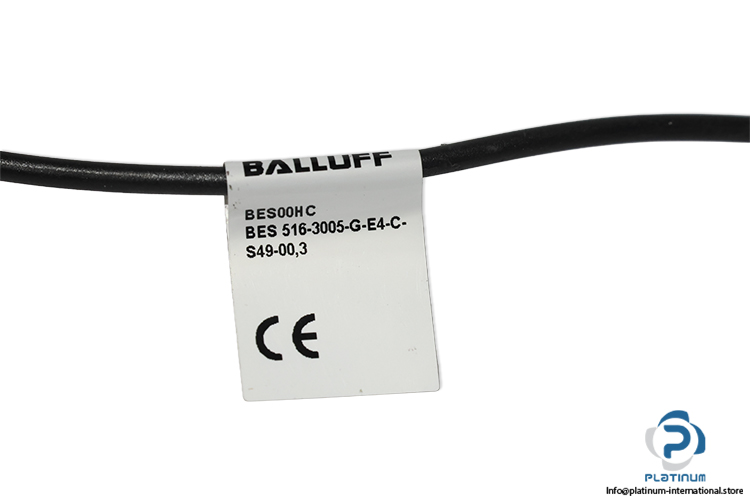

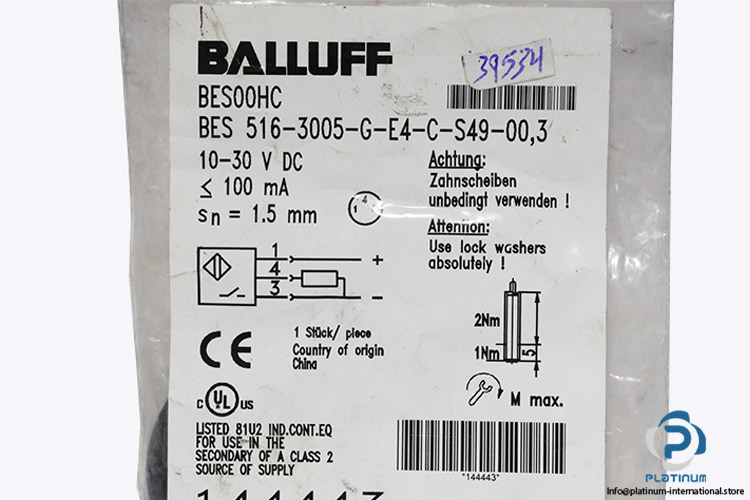

| Order Code | BES00HC |
| Switching output | PNP Normally open (NO) |
| Assured operating distance Sa | 1.21 mm |
| Range | 1.5 mm |
| Rated operating distance Sn | 1.5 mm |
| Cable diameter D | 3.00 mm |
| Cable length | 0.3 m |

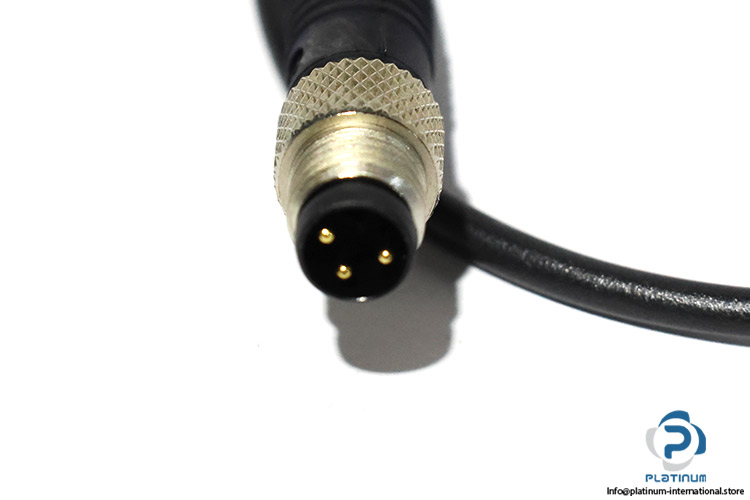

| Connection | M8x1-Connector, 3-pole |

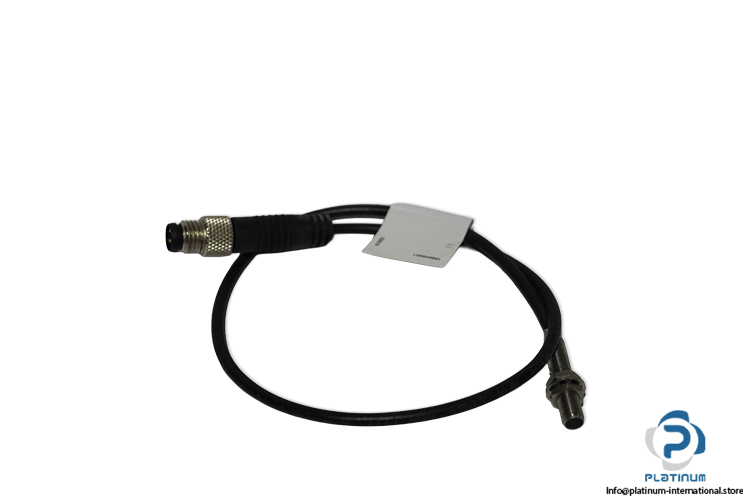

| Connection type | Cable with connector, 0.30 m, PUR |
| Hysteresis H max. (% of Sr) | 15.0 % |
| Load capacitance max. at Ue | 1 µF |
| MTTF (40 °C) | 305 a |
| No-load current lo max., undamped | 2 mA |
| Operating voltage Ub | 10…30 VDC |
| Output resistance Ra | Open drain |
| Pollution degree | 3 |
| Protected against miswiring | yes |
| Rated insulation voltage Ui | 75 V DC |
| Rated operating current Ie DC | 100 mA |
| Rated operating voltage Ue | DC 24 V |
| Rated short circuit current | 100 A |
| Repeat accuracy max. (% of Sr) | 5.0 % |
| Residual current Ir max. | 10 µA |
| Switching frequency | 5000 Hz |
| Utilization category | DC -13 |
| Voltage drop static max. | 2 V |
| Ambient temperature | -25…70 °C |
| Protection type | IEC 60529 IP67 |
| Mission Time | 20 a |
| Approval/Conformity | CE cULus EAC Basic standard IEC 60947-5-2 |
| Housing material | Stainless steel |
| Material jacket | PUR |
| Material sensing surface | PBT |
| Dimension | 5 x 27 mm |
| Installation for flush mounting Size | M5x0.5 |
| Tightening torque | 1 Nm |
| Stock key | CON003 |
| Condition | New |
| SKU | 1100951 |
| Weight | 0,01 |
