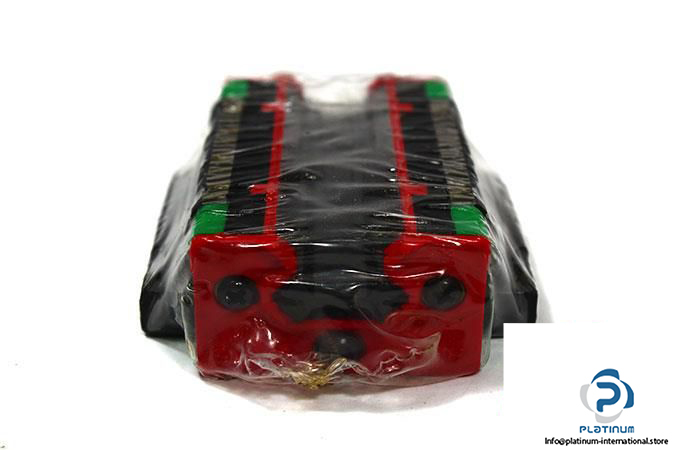

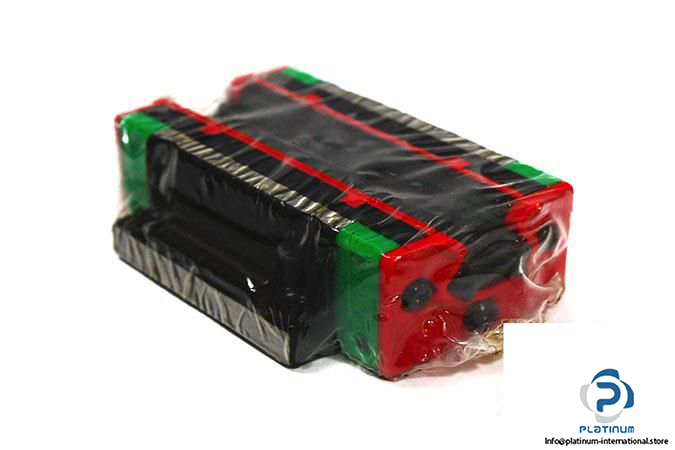

Hiwin HGW15CC Linear Guideway Block

In stock11 unitsReady to ship

48,24$

LINEAR GUIDEWAY BLOCK

Hiwin flange-type linear guideway block with 15 mm rail width, 14.7 kN dynamic load rating, and top or bottom mounting ” built for high-precision heavy load applications.

Manufacturer
HIWIN
SKU
965280
Condition
New
Share
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

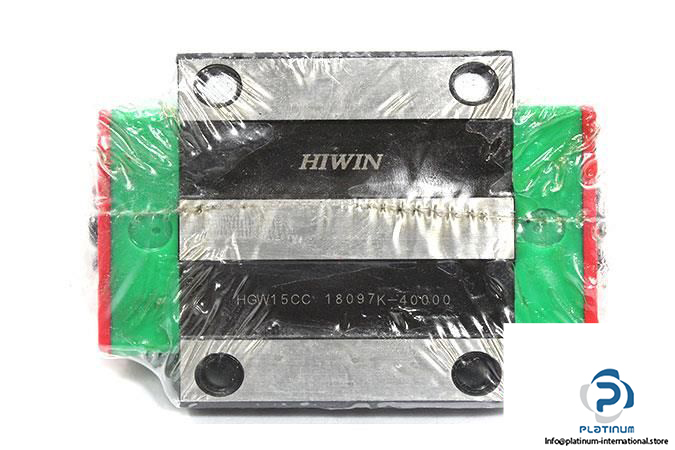

HIWIN HGW15CC 18097K-40000 LINEAR GUIDEWAY BLOCK

This high-performance linear guideway block from Hiwin is engineered for heavy load applications requiring precision, stability, and durability. Its compact flange design allows mounting from the top or bottom, providing versatile integration into industrial motion systems.

Manufacturer: Hiwin

Type: Linear Guideway Block

MNR: HGW15CC 18097K-40000

Size: 15 mm

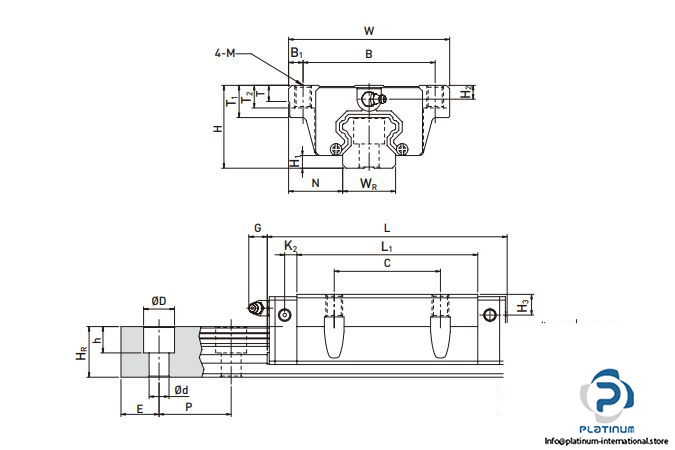

Block Height19.7 mm
System Height24 mm
Block Width (W)47 mm
Block Length (L)61.4 mm
Thread SizeM4 x 16
Distances Between Holes38 mm, 30 mm
Rail Width15 mm
Rail Height15 mm
Block TypeFlange
Load TypeHeavy Load
Block Mounting TypeTop or Bottom
Basic Dynamic Load Rating14.7 kN
Basic Static Load Rating23.47 kN
