Hiwin WEW17CC Linear Guideway Block
New
In stock10 unitsReady to ship
134,19$
LINEAR GUIDEWAY BLOCK
Flange-type linear guideway block from Hiwin’s WE Series with 17 mm size, designed for top or bottom mounting in heavy-duty motion applications with high rigidity and precise linear travel.17A0765400BlockFlangefour-rowGuideGuidewayHeavyHiwinLinearLoadmmMotionPrecisionrailSeriesTypeWEWEW17WEW17CCwide
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
HIWIN WEW17CC LINEAR GUIDEWAY BLOCK
This high-performance linear guideway block from Hiwin's WE Series is designed for heavy-load applications. With a four-row wide rail design and flange-type configuration, it provides excellent rigidity, precision, and load-bearing capacity. Suitable for both top and bottom mounting in automated and industrial machinery.
Manufacturer: Hiwin
Type: Linear Guideway Block
Model: WEW17CC

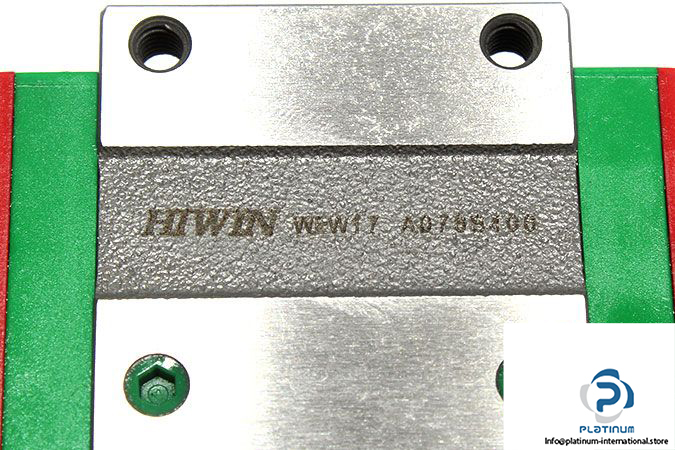

MRN: WEW17 A0765400
| Size | 17 mm |
| Total Height (H) | 17 mm |
| Block Width (W) | 60 mm |
| Block Length (L) | 50.6 mm |
| Block Height | 14.5 mm |
| Distance Between Holes | 53 mm, 26 mm |
| Basic Load Ratings “ Dynamic (Cr) | 5.2 kN |
| Basic Load Ratings “ Static (C‚r) | 9.6 kN |
| Series | WE Series; Four-Row Wide Rail Linear Guideway |
| Block Type | W; Flange Type |
| Load Type | C; Heavy Load |
| Block Mounting | Top or Bottom |
