Nachi UCT 206 Take UP Ball Bearing Unit
New
In stock5 unitsReady to ship
Take-Up Ball Bearing Unit
The Nachi UCT 206 Take-Up Ball Bearing Unit features T206 housing and UC206 bearing, offering precision, stability, and high load capacity for demanding industrial applications.20630AlignmentBallbearingCapacityComponentdiameterHighHousingIndustrialLoadMachinerymmNachiPreciserobustshaftT206Take-upUC206UCTUnit
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

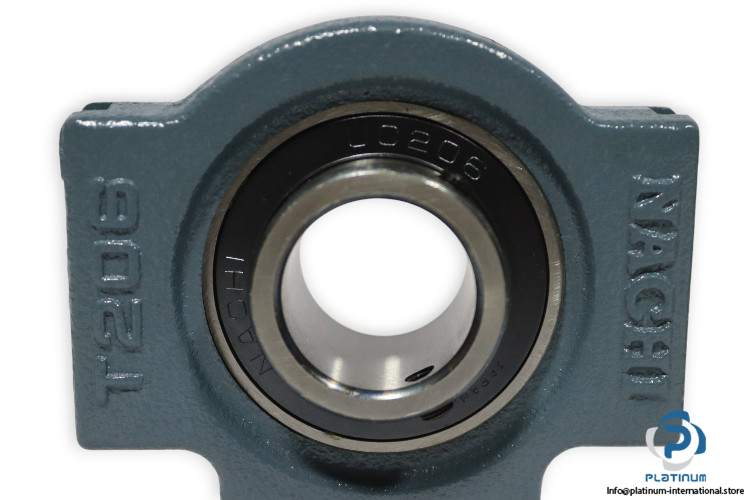

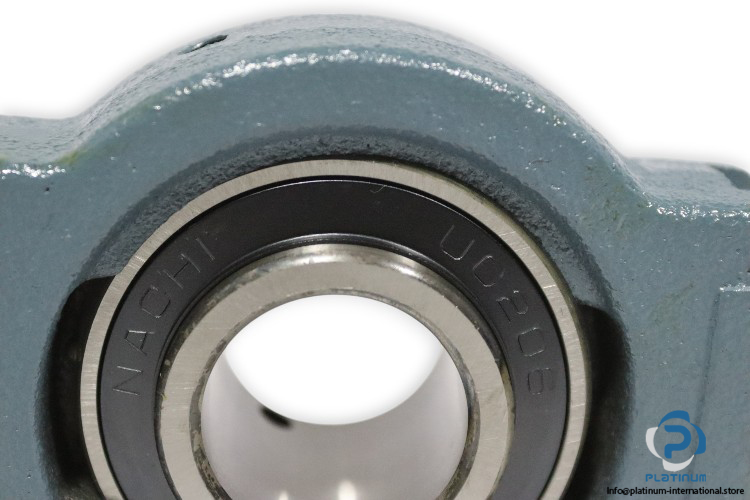

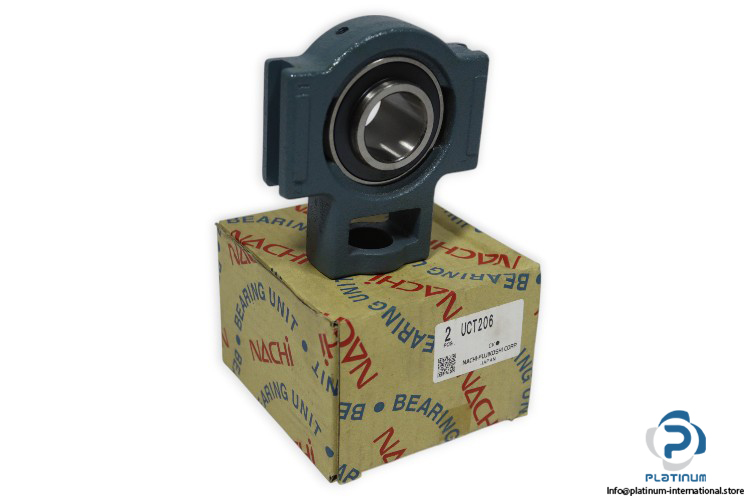

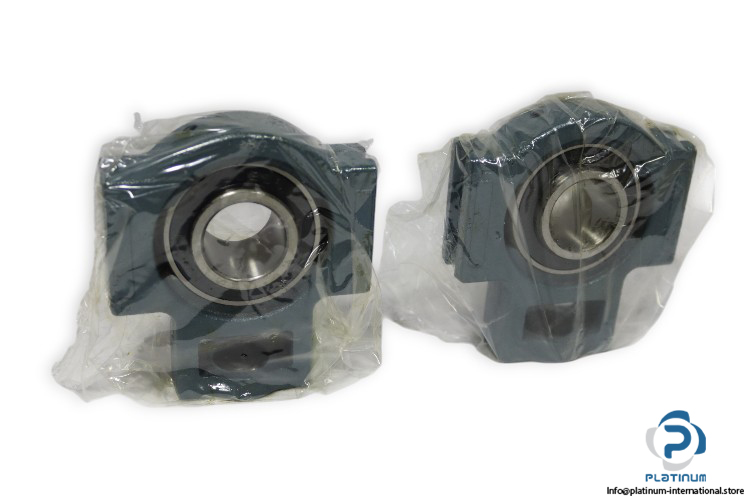

Nachi UCT 206 Take-Up Ball Bearing Unit
The Nachi UCT 206 Take-Up Ball Bearing Unit is a durable and precise solution designed for industrial applications requiring reliable performance. With its robust construction, featuring the T206 housing and UC206 bearing, this unit ensures stable operation under heavy loads and demanding conditions.
Manufacturer: Nachi
Type: TAKE UP BALL BEARING UNIT
Model: UCT 206
Engineered for high performance and reliability, the Nachi UCT 206 Take-Up Ball Bearing Unit is perfect for machinery requiring precise alignment and robust load capacity.
| Housing No. | T206 |
| Bearing No. | UC206 |
| Shaft Diameter (d) | 30 mm |
| Overall Width (i) | 37 mm |
| Width of Inner Ring (Bi) | 38.1 mm |
| Overall Height | 102 mm |
| Height of Attachment End | 56 mm |
| Distance from Attachment End Face to Center Line of Spherical Seat Diameter | 70 mm |
| Overall Length | 113 mm |
| Diameter of Attachment Bolt Hole | 22 mm |
| Length of Attachment Slot | 16 mm |
| Height of Attachment Slot | 37 mm |
| Length of Piloting Groove | 57 mm |
| Basic Load Rating (Dynamic, Static) | 19600 , 11300 N |
| Housing Type | Take-up |
| Locking Device | Set Screw |
| Item Per Set | 2 |
