Tsubaki H30TA Linear Bearing Block
In stock1 unitReady to ship
69,99$
Linear Bearing Block
TSUBAKI H30TA Linear Bearing Block provides precise linear motion control with a 30 mm size and flange type design. It features high dynamic and static load ratings, making it ideal for industrial applications requiring durability and accuracy.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
TSUBAKI H30TA Linear Bearing Block
The TSUBAKI H30TA Linear Bearing Block offers precise motion control with its flange type design and robust load ratings. Ideal for industrial applications requiring accurate linear movement.
Manufacturer: TSUBAKI
Type: Linear Bearing Block

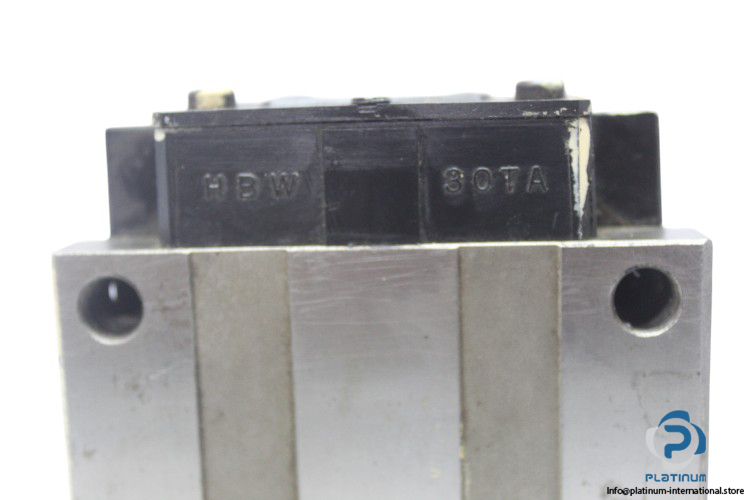

Model: H30TA (HBW 30TA)

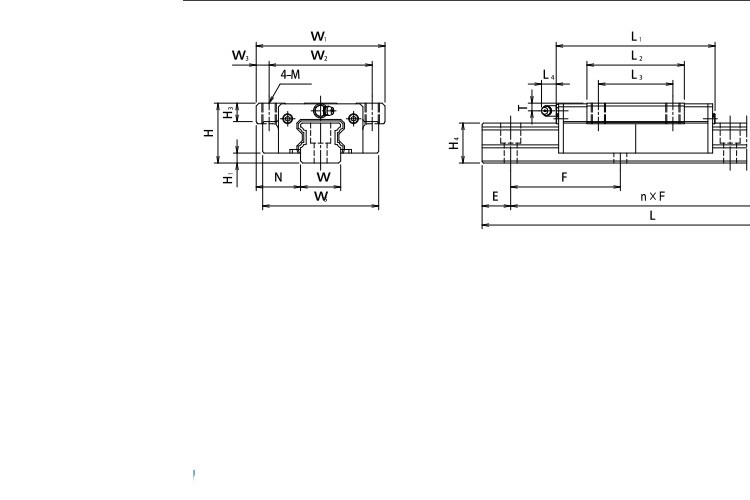

| Size | 30 mm |
| Total Height (H) | 42 mm |
| Block Height (H-H1) | 35 mm |
| Width (N) | 31 mm |
| Width (W1) | 90 mm |
| Width (W3) | 9 mm |
| Block Length (L1) | 112 mm |
| Block Length (L2) | 68 mm |
| Block Length (L3) | 52 mm |
| Width (W2) | 72 mm |
| Block Type | Flange Type |
| Mounting Hole | 4 Tapped holes (M10×14) |
| Dynamic Load Rating (C50) | 29,100 N |
| Dynamic Load Rating (C100) | 23,100 N |
| Static Load Rating (C0) | 52,110 N |
