FYH Ucfl 212 Oval Flange Ball Bearing Unit

Manufacturer: FYH
Type: Oval flange ball bearing unit
Model: UCFL 212J

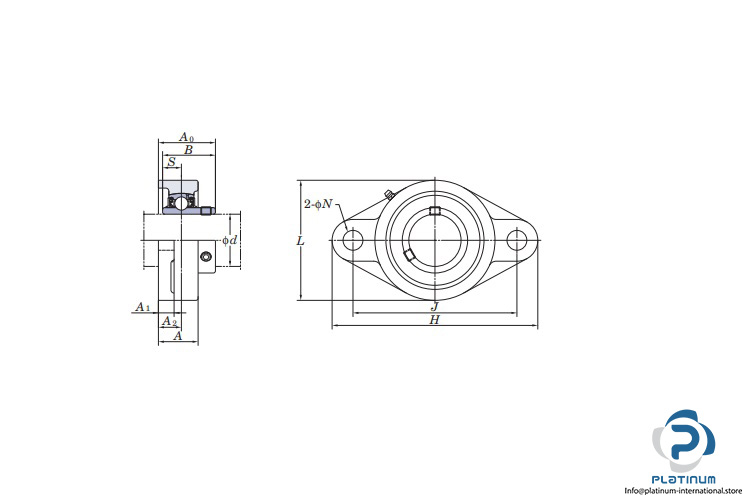

Dimensions
Bore Diameter d: 60 mm
Overall Length L: 140 mm
Width of inner ring B: 65.1 mm
Overall Height H: 250 mm
Distance Between Attachment Bolts J: 202 mm
Overall unit width A0: 68.7 mm
Basic load rating:
Dynamic Cr: 52400 N
Static C0r: 36200 N
Bore type: Cylindrical
Mounting: Oval Flange
Locking device: Set Screw
Material, housing: Cast iron
