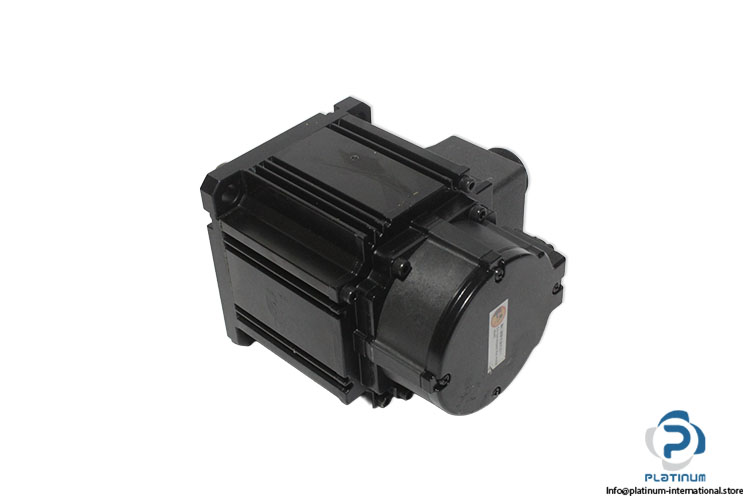

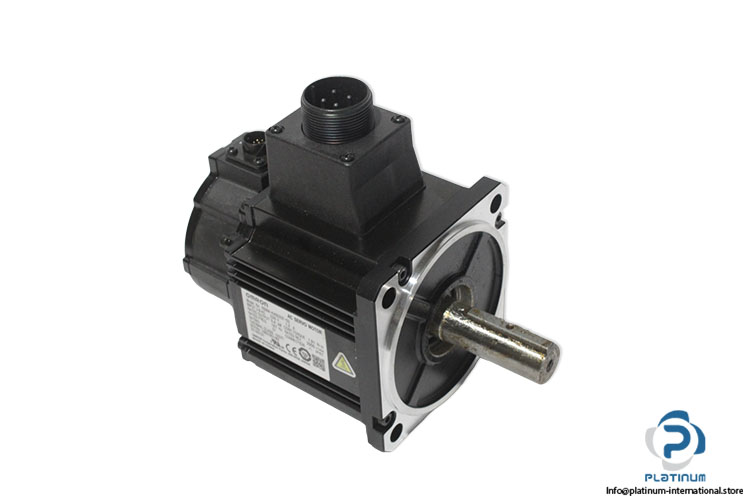

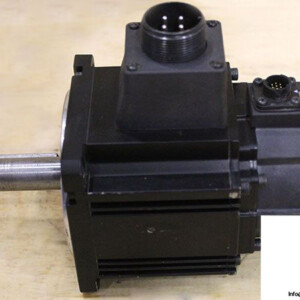

Omron R88M-K40020F-S2 AC Servo Motor
Neu
Auf Lager1 EinheitVersandbereit
999,99$
OMRON R88M-K40020F-S2 Accurax G5 Servo Motor The OMRON Accurax G5 R88M-K40020F-S2 servo motor is a high-precision industrial motion control motor designed for demanding automation applications. Featuring 0.4kW output, 2000 rpm rated speed, 20-bit incremental encoder, and IP67 protection for reliable and accurate performance.
Rated Output:
0.4 kW
Rated Voltage:
228 V AC
Rated Current:
1.2 A
Rated Speed:
2000 min-1
Continuous Torque:
1.91 Nm
Encoder Resolution:
20 Bit
Protection Class:
IP67
ACAccuraxAutomationCNCControlEncoderG5IncrementalIndustrialIP67MotionmotorOmronPrecisionRoboticsServo
Gebraucht
Auf Lager 800,00$
Dieses Produkt ist auch als gebraucht erhältlich
Gebrauchte Version anzeigen →
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

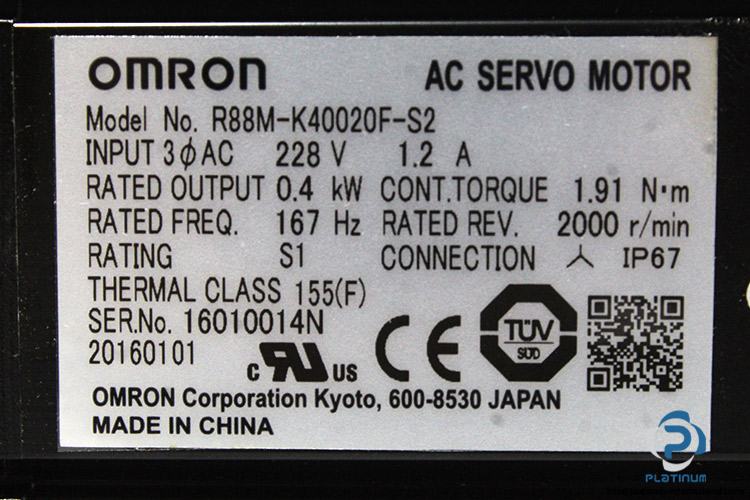

| SN | 16010014N 20160101 |

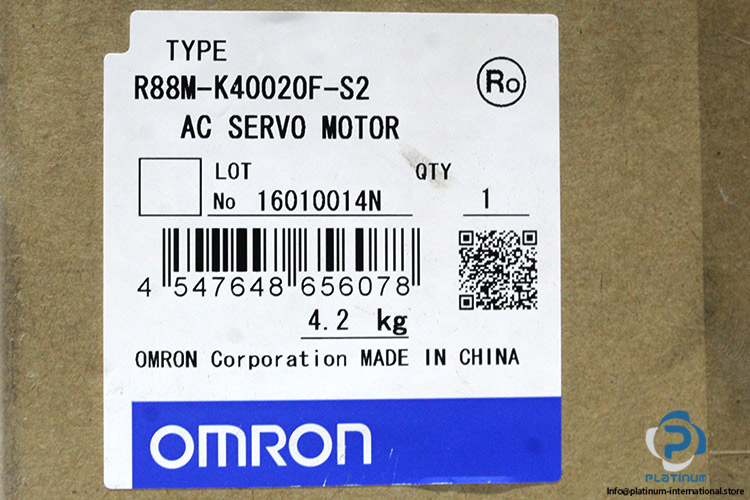

| Ref No | 4 547648 656078 |
| Series | G5 |
| Flange size square (LC) | 100 mm |
| Shaft diameter | 19 mm |
| Rated Voltage | 228 V AC |
| Rated Current | 1.2 A |
| Rated Output | 0.4 kW |
| Rated Speed | 2000 min-1 |
| Cont. Torque | 1.91 Nm |
| Rated Frequency | 167 Hz |
| Duty | S1 |
| Thermal Class | 155(F) |
| Protection Class | IP67 |
| Voltage and encoder specifications | 400 V and 20-bit incremental encoder |
| Encoder type | Incremental |
| Encoder resolution | 20 Bit |
| Condition | New |
| SKU | 1099024 |
| Weight | 4 |
